MARS Ball Valves
Compact wafer-type ball valves for space-constrained installations — ISO 5211 direct-mount pads, in ANSI and DIN flange ratings.
3
Flanged series
Fire safe
options available
CF8M
stainless steel body

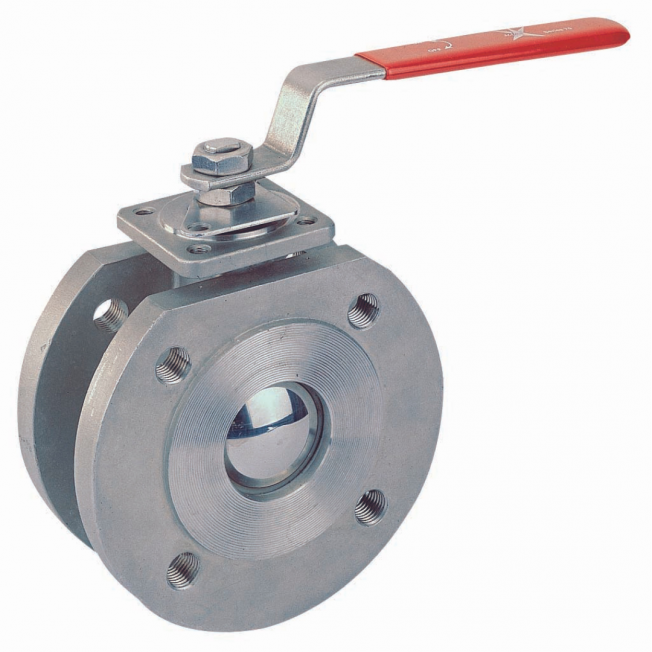

Configure onlineSeries 99
Design
1-piece compact wafer
Port
Full port
Size
1/2" – 4"
Pressure Rating
PN16/40, PN25/40
Body
CF8M
Seats
PTFE / RPTFE

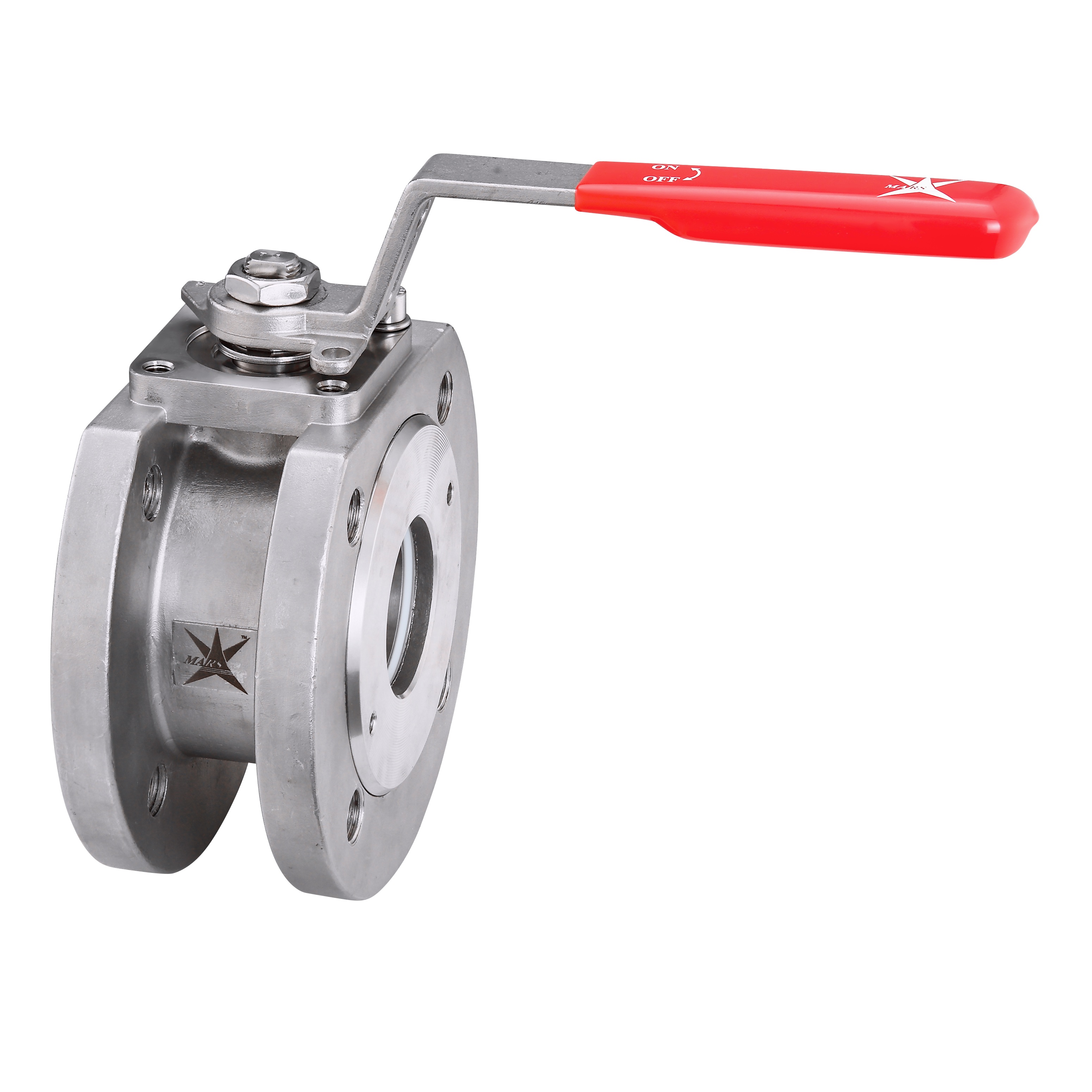

Configure onlineSeries F98A
Design
Wafer type
Port
Full port
Size
1/2" – 4"
Pressure Rating
PN10/40
Body
1.4408 / 1.0619
Seats
PTFE / RTFE
Emissions
ISO 15848-1 certified

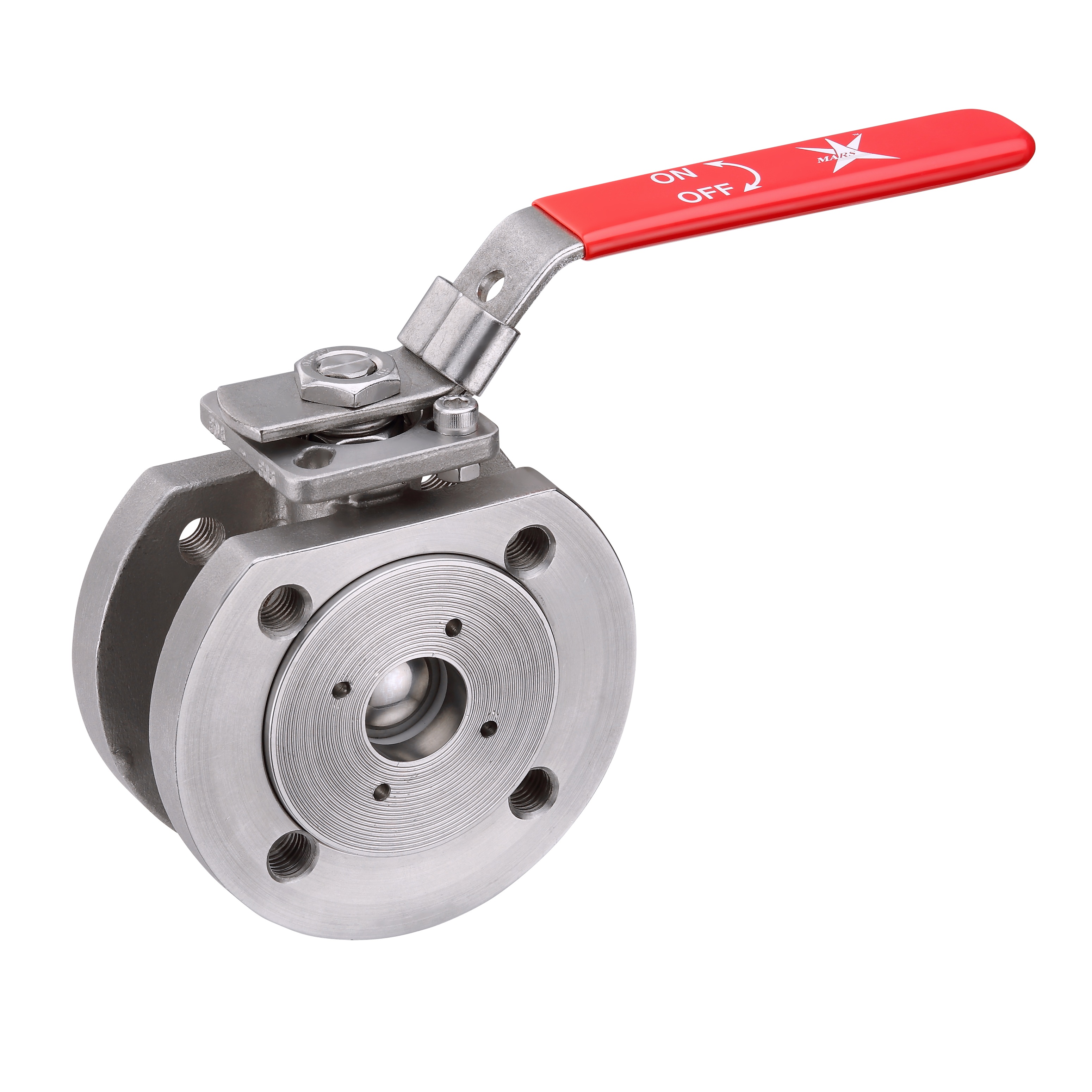

Configure onlineSeries F98
Design
Wafer type Direct Mount
Port
Full port
Size
1/2" – 4"
Pressure Rating
PN16
Body
1.4408 / 1.0619
Seats
PTFE / RTFE
Fire safe
Conforms to B16.34
