MARS Ball Valves
MARS flanged ball valves in ANSI, DIN and JIS flange ratings for direct in-line installation — uni-body, two-piece, three-piece, wafer and steam-jacketed designs.
6
Flanged series
CF8M
stainless steel body

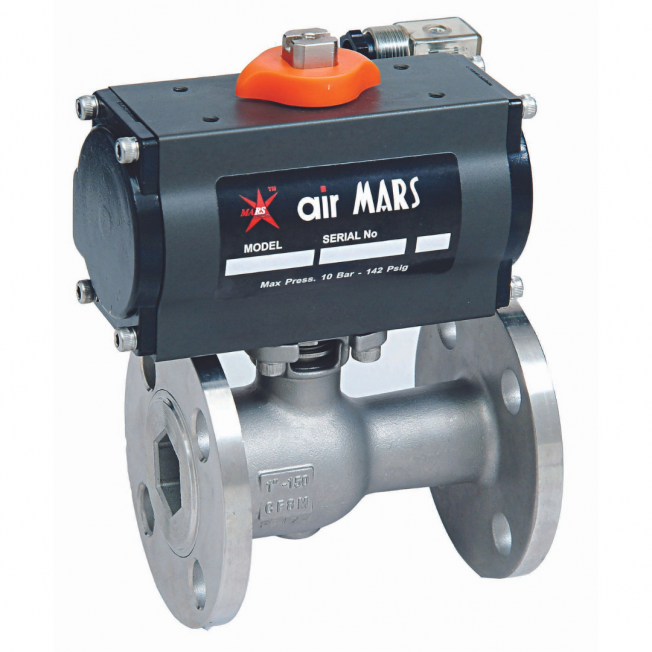

Uni Flanged
Series
91D
Design
Uni-body flanged
Port
Reduced port
Size
1/2" – 6"
Pressure Rating
ANSI Class 150/300
Body
CF8M / WCB
Seats
PTFE / RTFE (others on request)

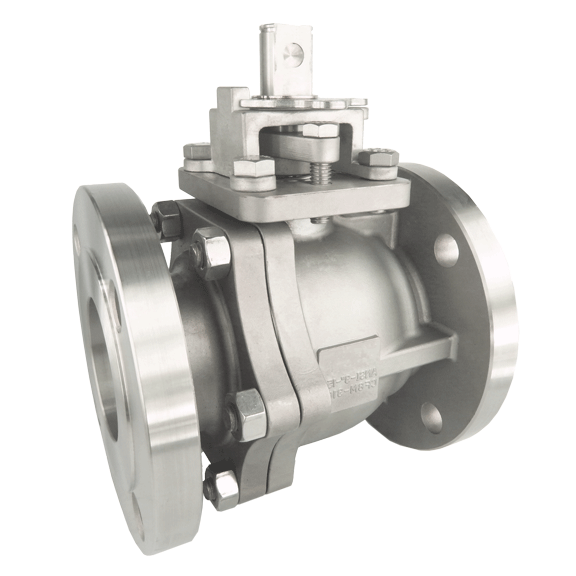

Economical 2-Piece Flanged
Series
93, 94D
Design
2-piece economical flanged
Port
Full port
Size
1/2" – 12"
Pressure Rating
ANSI Class 150/300, PN16/40, JIS 10K/20K
Body
CF8M / WCB / Special Alloy
Seats
PTFE / RTFE (Metal seat optional)

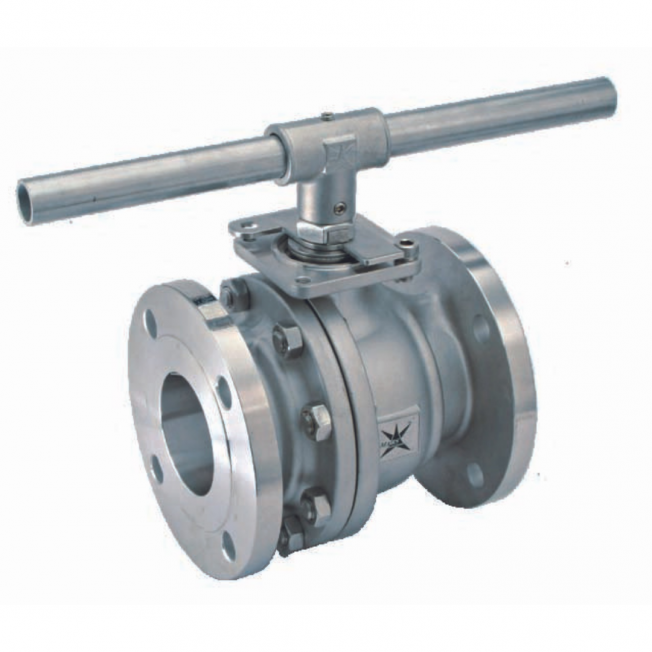

High Performance 2-Piece Flanged
Series
90, 90D
Design
High performance 2-piece flanged
Port
Full port
Size
1/2" – 12"
Pressure Rating
ANSI Class 150/300, PN16/40
Body
CF8M / WCB / Special Alloy
Seats
PTFE / RTFE

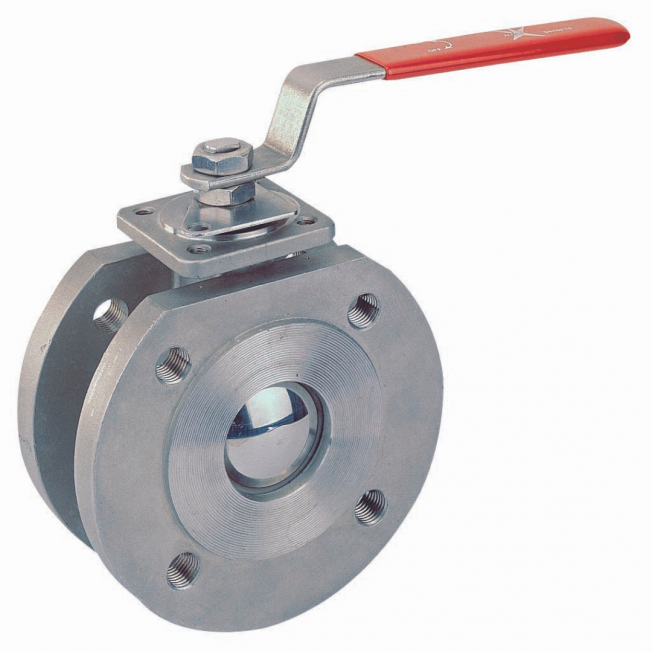

Wafer Type Flanged
Series
99, F98A, F98
Design
Wafer type flanged
Port
Full port
Size
1/2" – 6"
Pressure Rating
ANSI Class 150, PN16/40
Body
CF8M
Seats
PTFE / RTFE

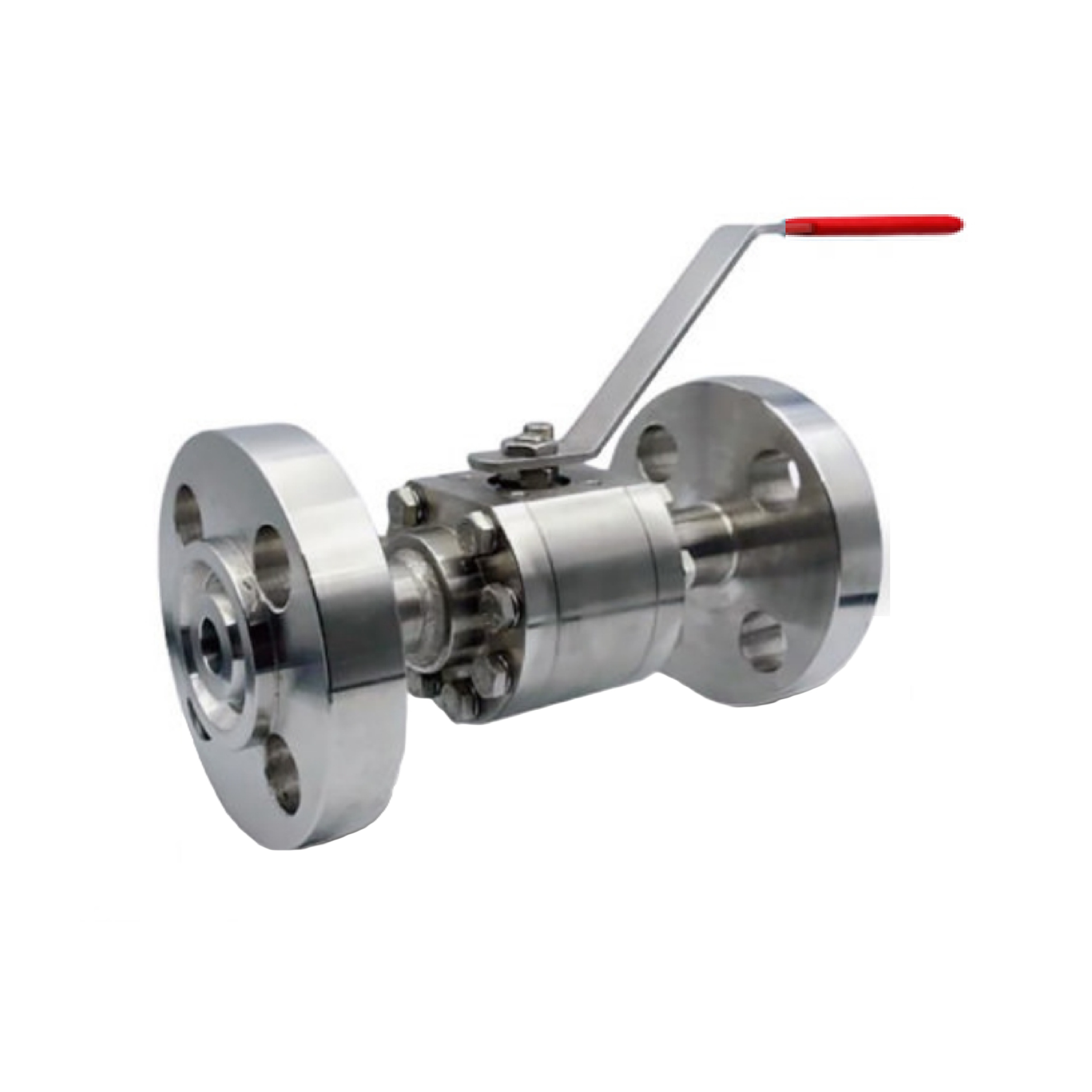

3-Piece Flanged
Series
F85, F88, F89
Design
3-piece flanged, high pressure
Port
Full port
Size
1/2" – 4"
Pressure Rating
ANSI #600 – #2500
Body
CF8M / WCB / Special Alloy
Seats
Delrin / Peek / TFM1600

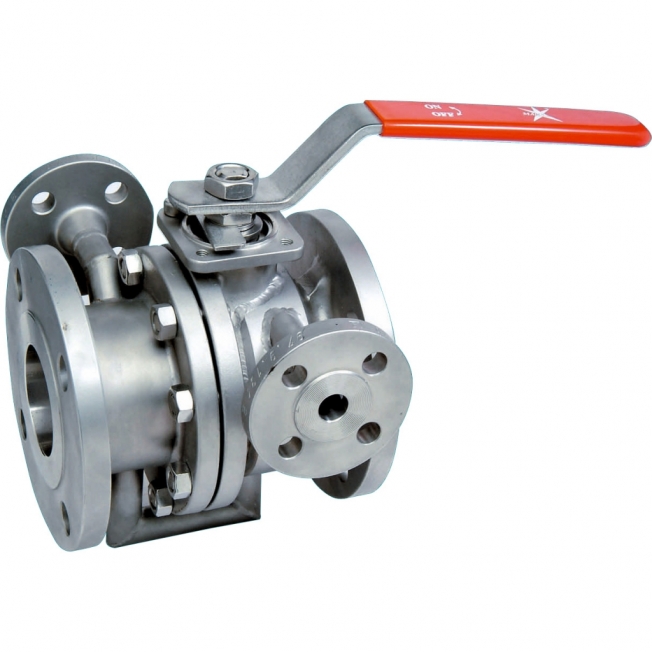

Steam Jacketed Flanged
Series
90J, 90DJ
Design
2-piece steam jacketed flanged
Port
Full port
Size
1/2" – 8"
Pressure Rating
ANSI Class 150/300, PN16/40, JIS 5K–20K
Body
CF8M
Seats
25% carbon + PTFE
