MARS Ball Valves
3-way, 4-way and 5-way MARS ball valves for diverting, mixing and switching flow, including direct-mount, flanged and diverter designs.
14
Multi-port series
3,000 PSI
highest rating
SIL 3
capable series
Configure online where marked, or ask us for any series.

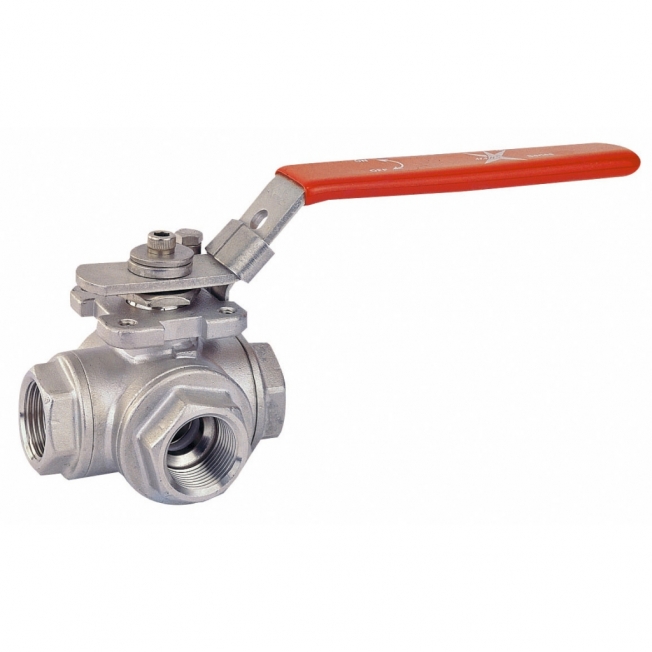

Series 38
Design
3-way threaded
Port
Reduced port
Ports
L port, T port
Size
1/4" – 3"
Pressure Rating
1000 PSI
Body
CF8M
Seats
PTFE/RTFE (others on request)
Ends
NPT, BSP, BSPT

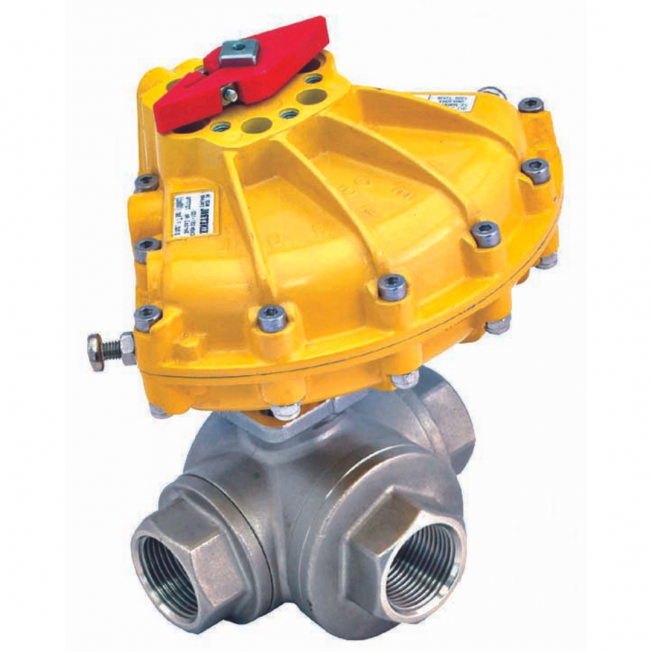

Series 39
Design
3-way threaded
Port
Full port & Reduced port
Ports
L port, T port
Size
1/4" – 2"
Pressure Rating
1000 PSI
Body
CF8M
Seats
PTFE/RTFE (others on request)
Ends
NPT, BSP, BSPT

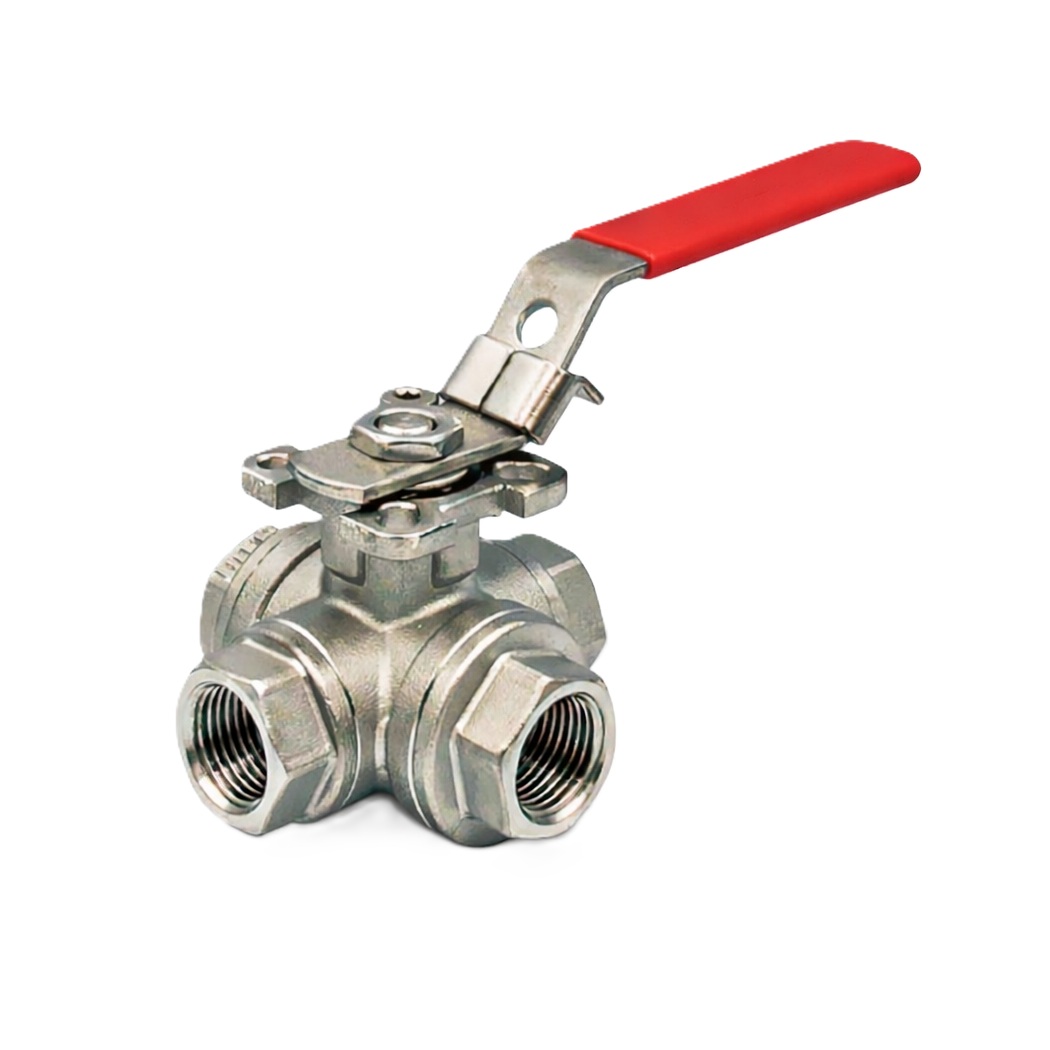

Series F36-40
Design
4-way Direct Mount
Port
Full port & Reduced port
Ports
L port, LL port, T port
Size
1/4" – 2"
Pressure Rating
1000 PSI
Body
CF8M
Seats
PTFE/RTFE (cavity filler seat on request)
Ends
Threaded

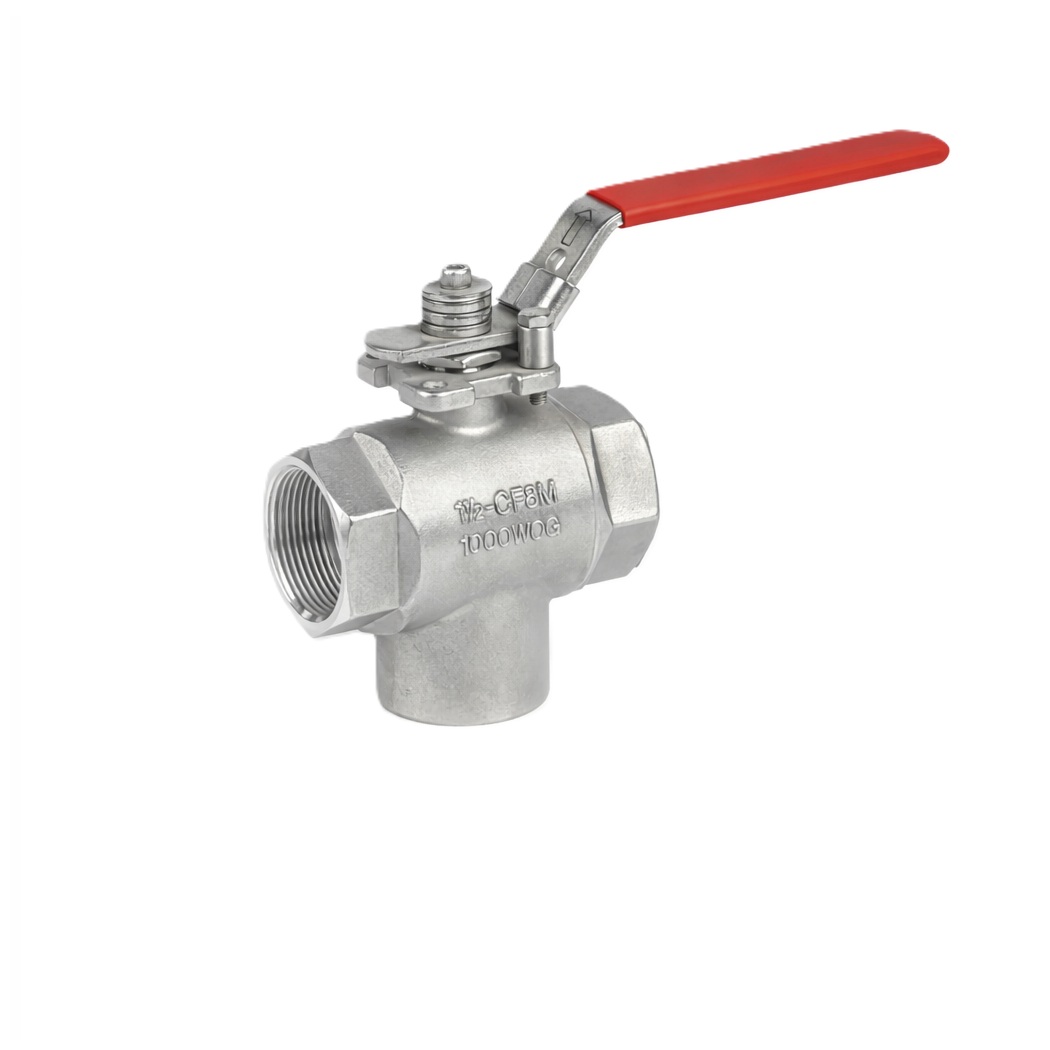

Series F36-60
Design
3-way Bottom Entry
Port
Reduced port
Ports
L port, T port
Size
1/4" – 3"
Pressure Rating
1000 PSI
Body
CF8M
Seats
PTFE
Ends
NPT, BSP, BSPT

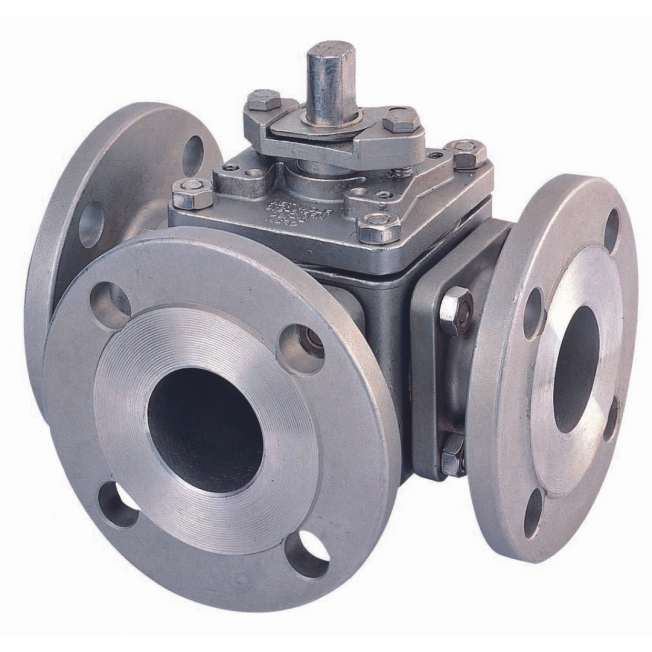

Series 30
Design
3-way, 4-way flanged
Port
Full port
Ports
L port, T port, X port
Size
1 1/2" – 12"
Pressure Rating
ANSI Class 150, Class 300, PN16/40
Body
CF8M/ WCB
Seats
PTFE/RTFE (others on request)

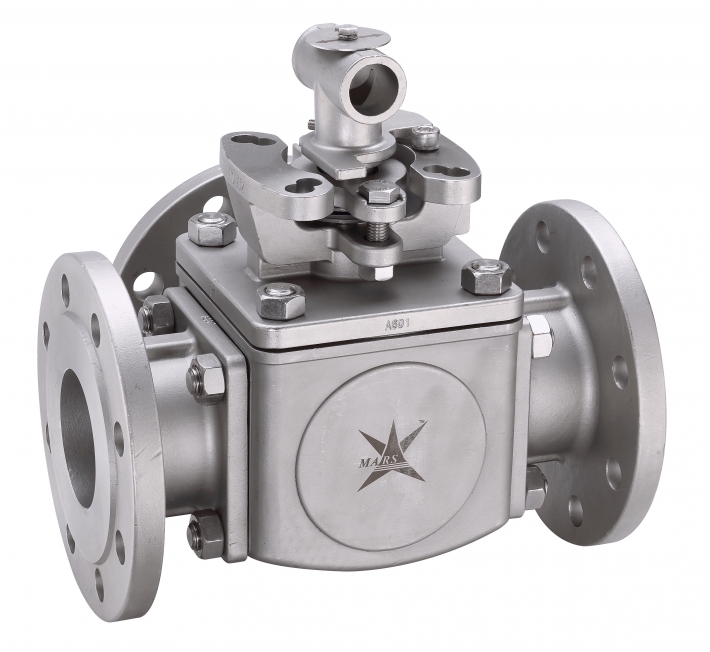

Series 30M
Design
3-way flanged
Port
Full port
Ports
L port, T port
Size
1 1/2" – 6"
Pressure Rating
ANSI Class 150, Class 300, PN10/16, PN25/40
Body
CF8M/ WCB
Seats
PTFE/RTFE (others on request)

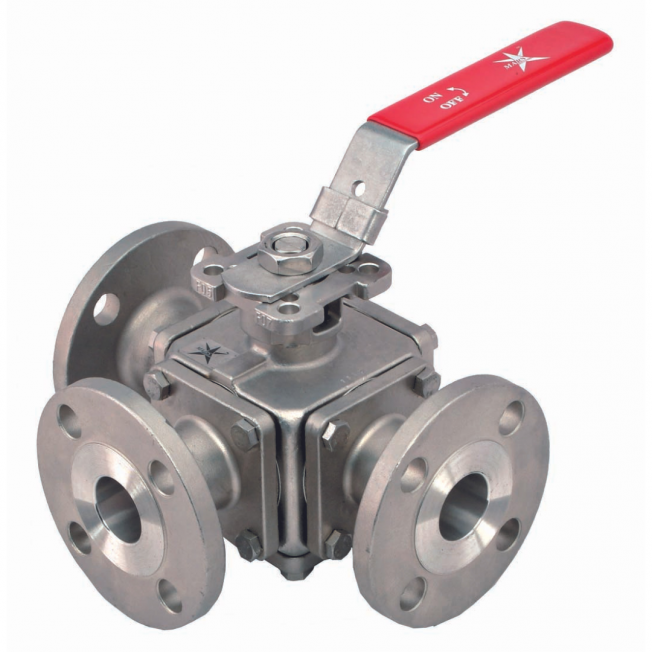

Configure onlineSeries 33
Design
3-way, 4-way, 5-way
Port
Full port
Ports
L port, T port, I port, X port, LL port, TT Port
Size
1/4" – 4"
Pressure Rating
ANSI Class 150, Class 300, PN16/40
Body
CF8M
Seats
PTFE/RTFE (others on request)
Ends
Flanged, Threaded, Socket weld, Butt weld

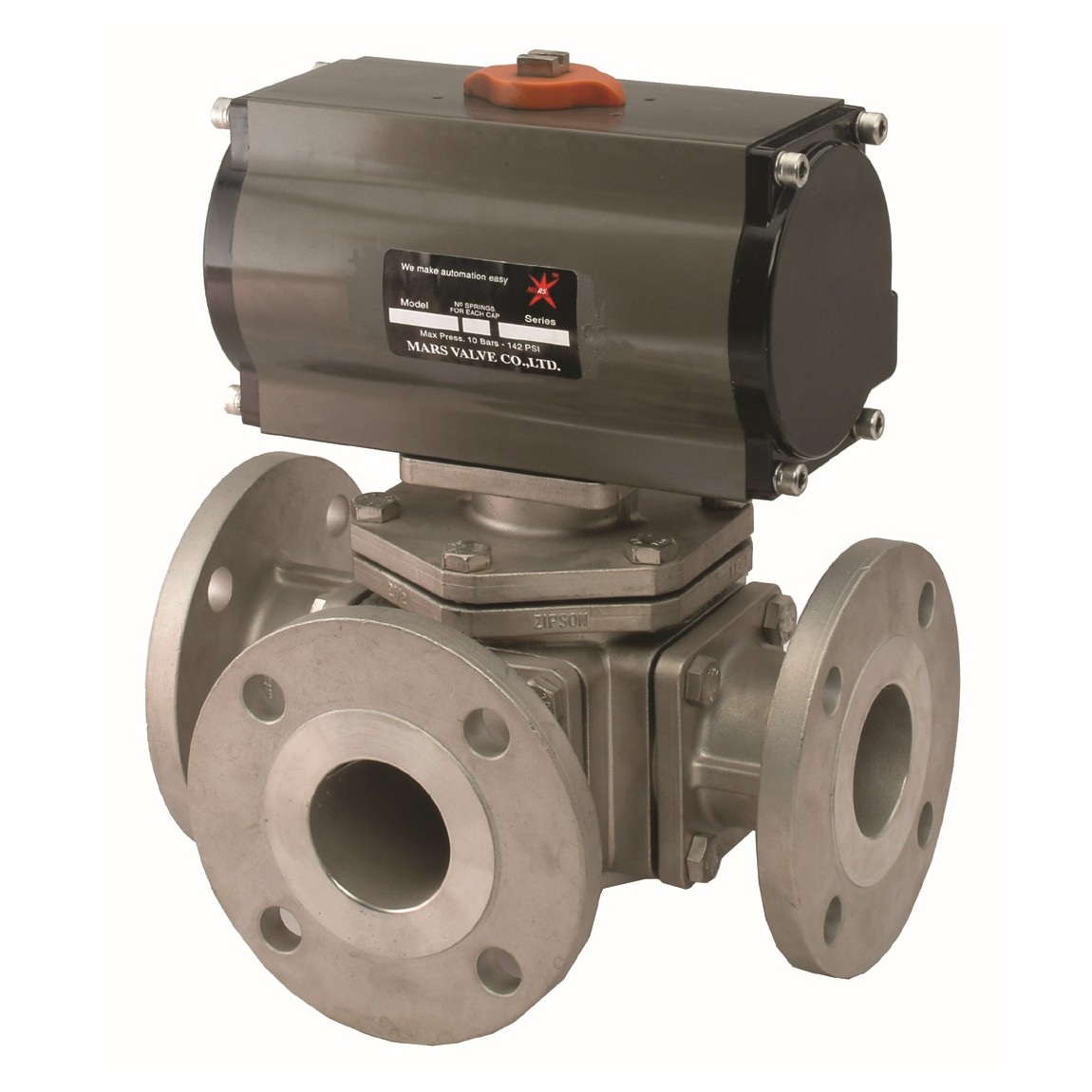

Series 36
Design
3-way, 4-way
Port
Full port & Reduced port
Ports
L port, T port, I port, X port
Size
1/4" – 12"
Pressure Rating
ANSI Class 150, Class 300, PN16/40
Body
CF8M/ WCB
Seats
PTFE/RTFE (others on request)
Ends
Flanged, Threaded, Socket weld, Butt weld

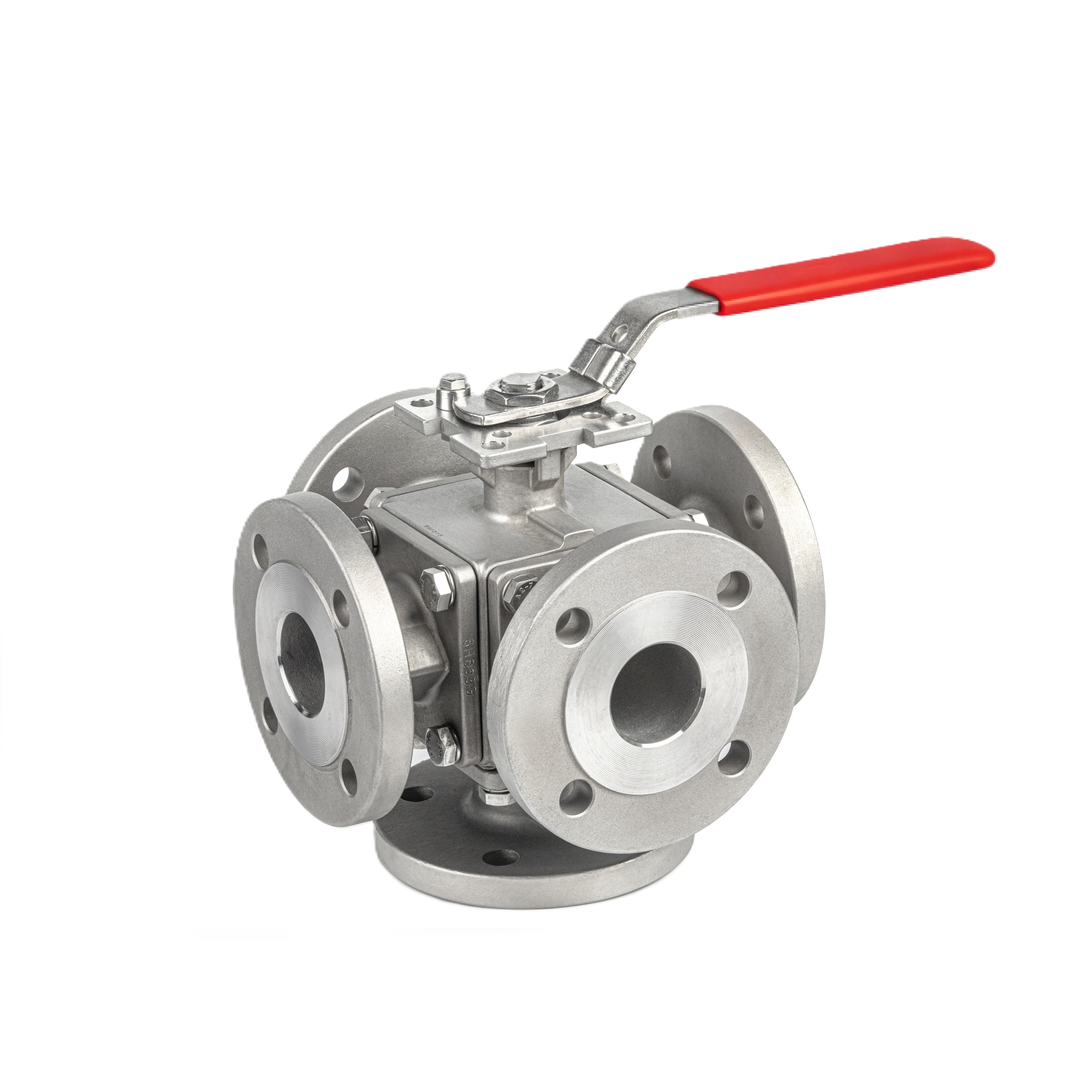

Series F35
Design
5-way Direct Mount
Port
Full port
Ports
L port, T port, X port
Size
1/2" – 2"
Pressure Rating
ANSI Class150,PN16/40, JIS10K
Body
CF8M
Seats
PTFE/RTFE/ TFM1600
Ends
Flanged end

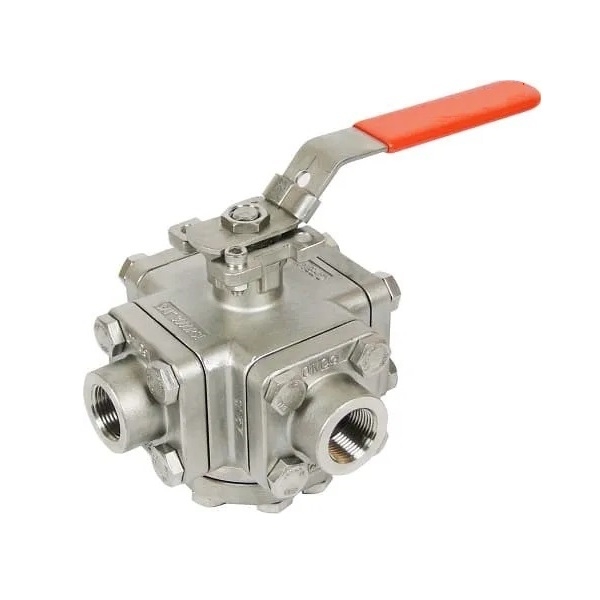

Series F51
Design
3/4-way Direct Mount
Port
Full port
Ports
L port, T port, X port, I port
Size
1/4" – 2"
Pressure Rating
3000 PSI
Body
CF8M/ WCB (Special Alloy: Hastelloy C/ Alloy 20/ Super Duplex/ Monel on request)
Seats
TFM4215/ Peek (cavity filler seat on request)
Ends
Threaded/ Socket weld/ Butt weld

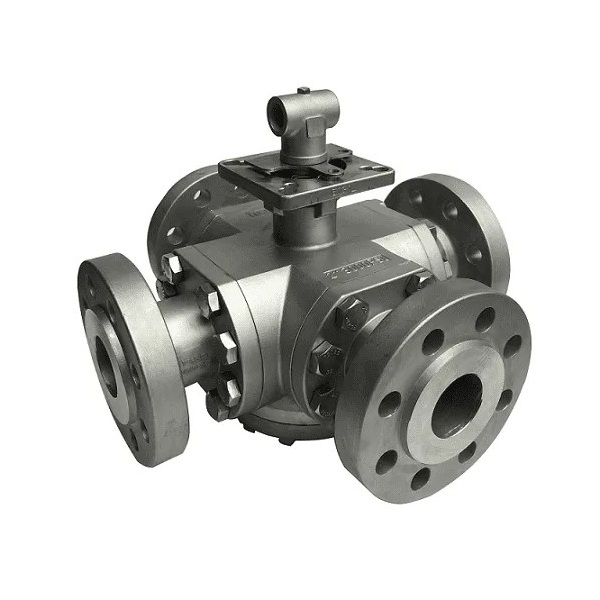

Series F52
Design
3/4-way Direct Mount
Port
Full port
Ports
L port, T port, X port, I port
Size
1/2" – 2"
Pressure Rating
ANSI#600/900/1500
Body
CF8M/ WCB (Special Alloy: Hastelloy C/ Alloy 20/ Super Duplex/ Monel on request)
Seats
TFM1600/TFM4215/ Peek (cavity filler seat on request)
Ends
Flanged end

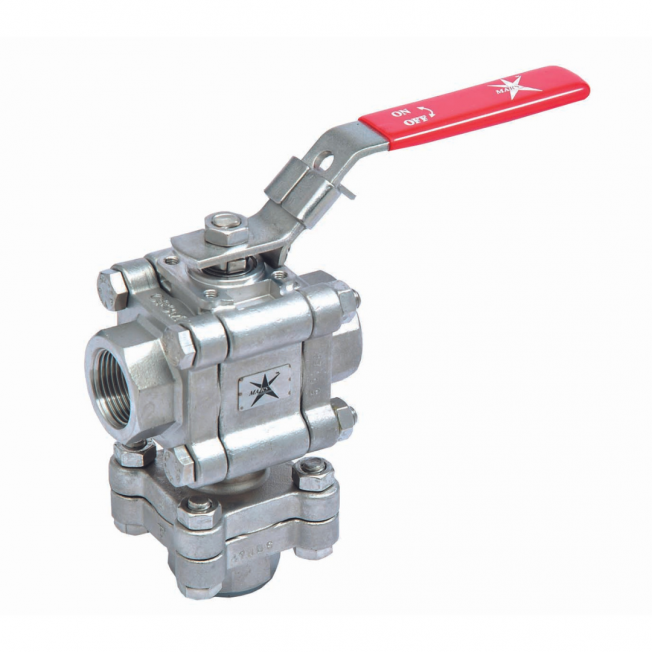

Series 83D
Design
Diverter
Port
Full port & Reduced port
Ports
L port, T port
Size
1/4" – 2"
Pressure Rating
2000 PSI
Body
CF8M
Seats
PTFE/RTFE (others on request)
Ends
Threaded, Socket weld, Butt weld, Flanged

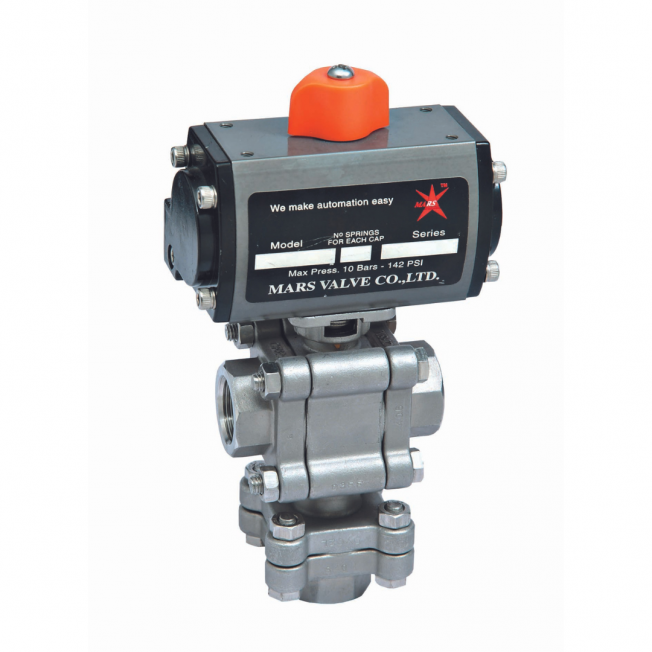

Series 88D
Design
Diverter
Port
Full port & Reduced port
Ports
L port, T port
Size
1/4" – 2"
Pressure Rating
2000 PSI
Body
CF8M
Seats
PTFE/RTFE (others on request)
Ends
Threaded, Socket weld, Butt weld, Flanged

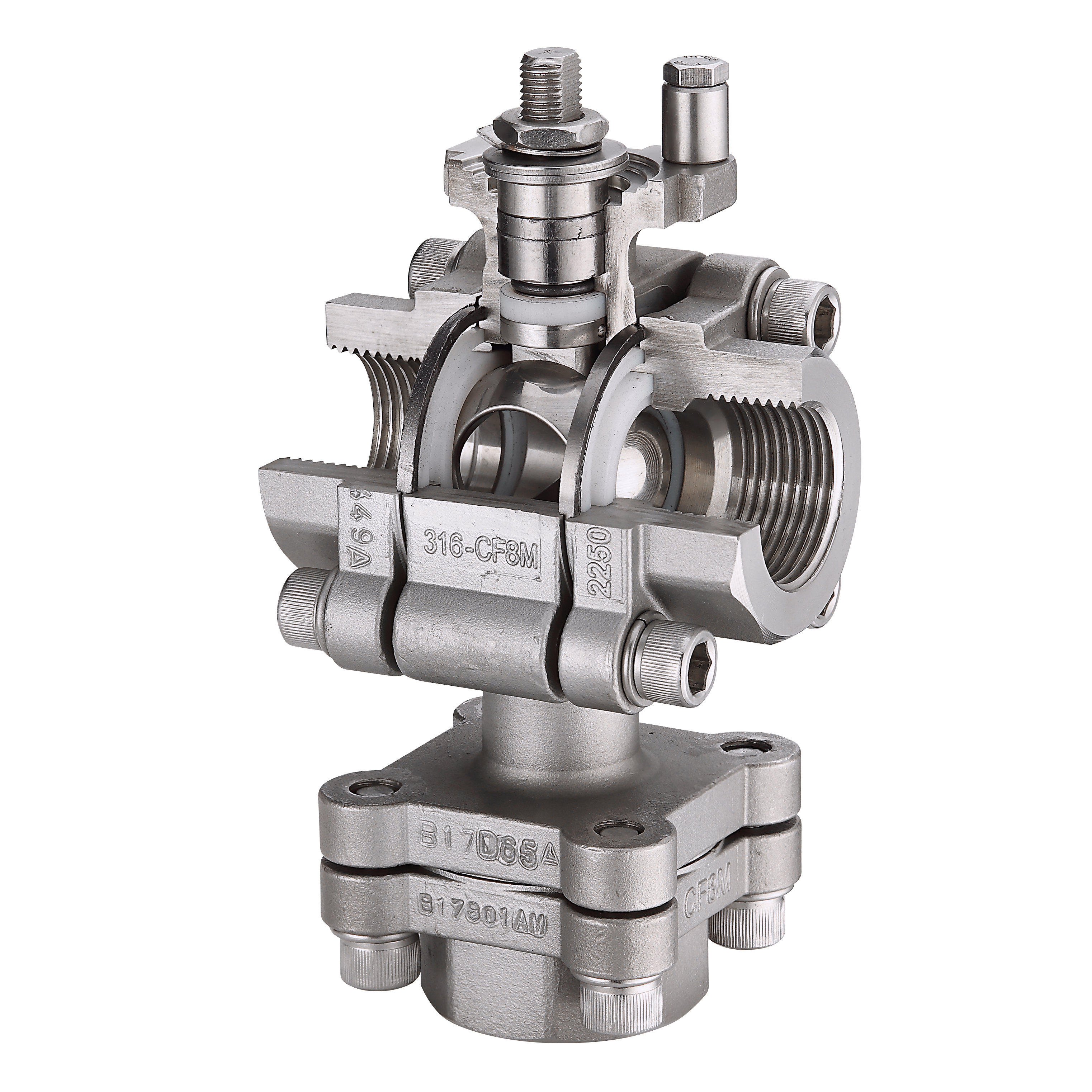

Series F89D
Design
Diverter
Port
Full port
Size
1/2" – 2"
Pressure Rating
2250 PSI, ANSI#600
Body
CF8M/ WCB
Seats
PTFE/ TFM1600/ PEEK
Ends
Threaded, Socket weld, Butt weld, Flanged end
Used in: Chemical processing
