MARS Ball Valves
MARS ball valves fire-type tested to API 607, for flammable fluids and hazardous areas in oil & gas, petrochemical and chemical plants.
6
Fire safe series
2,000 PSI
highest rating
SIL 3
capable series

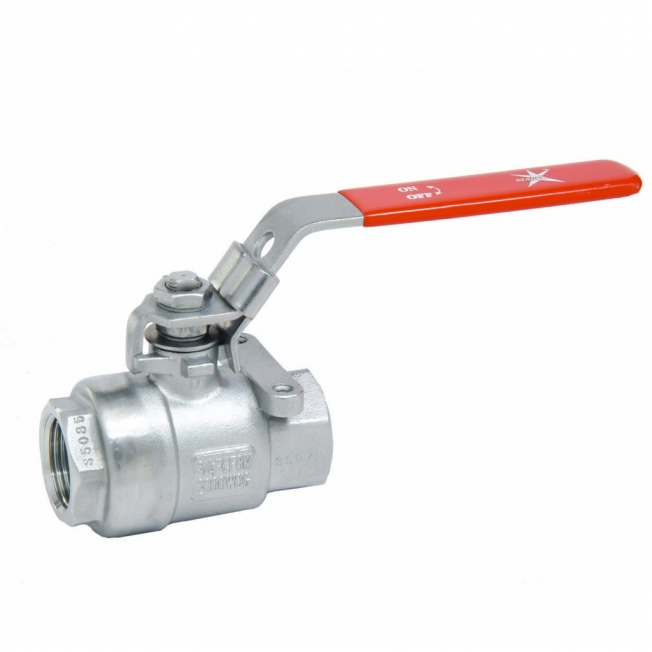

Configure onlineSeries 28
Design
2-piece fire safe
Port
Full port
Size
1/4" – 3"
Pressure Rating
1000 PSI
Body
CF8M / WCB
Seats
PTFE / RTFE (others on request)
Ends
NPT, BSP, BSPT
Fire safe
API 607, 7th Edition

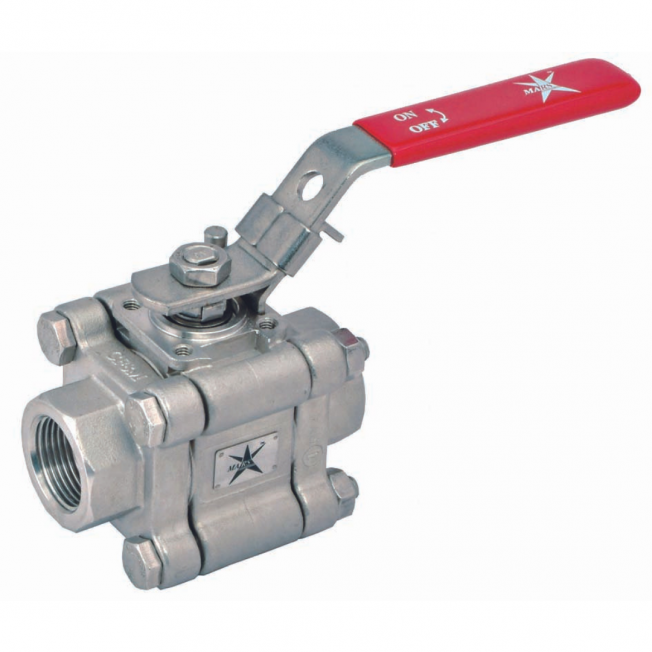

Configure onlineSeries 83
Design
3-piece fire safe
Port
Full port / Reduced port
Size
1/4" – 2"
Pressure Rating
2000 PSI
Body
CF8M / WCB
Seats
PTFE / RTFE
Ends
Threaded, Butt weld, Socket weld, Flanged
Fire safe
API 607, 7th Edition

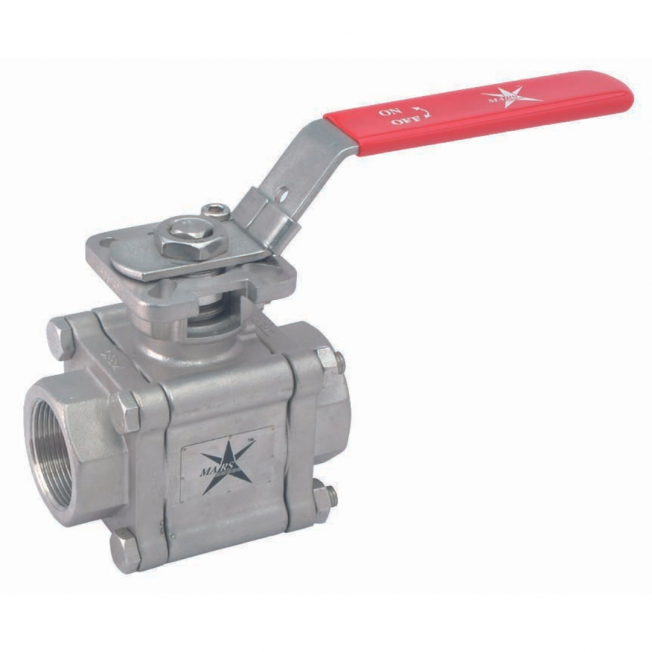

Configure onlineSeries 88
Design
3-piece fire safe metal seated
Port
Full port / Reduced port
Size
1/4" – 4"
Pressure Rating
2000 PSI
Body
CF8M / WCB
Seats
PTFE / RTFE
Ends
Threaded, Butt weld, Socket weld, Flanged
Fire safe
API 607, 7th Edition

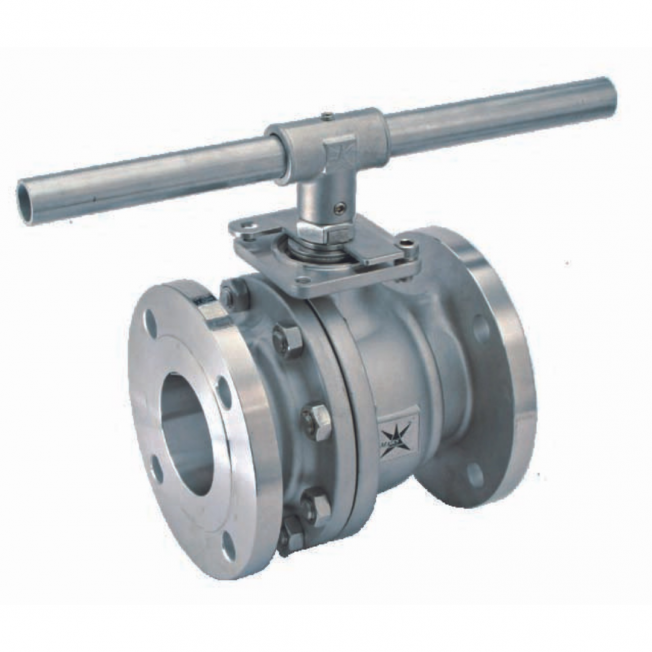

Configure onlineSeries 90
Design
2-piece fire safe flanged
Port
Full port
Size
1/2" – 4"
Pressure Rating
ANSI Class 150/300, PN16/40
Body
CF8M / WCB
Seats
PTFE / RTFE (others on request)
Fire safe
API 607, 7th Edition

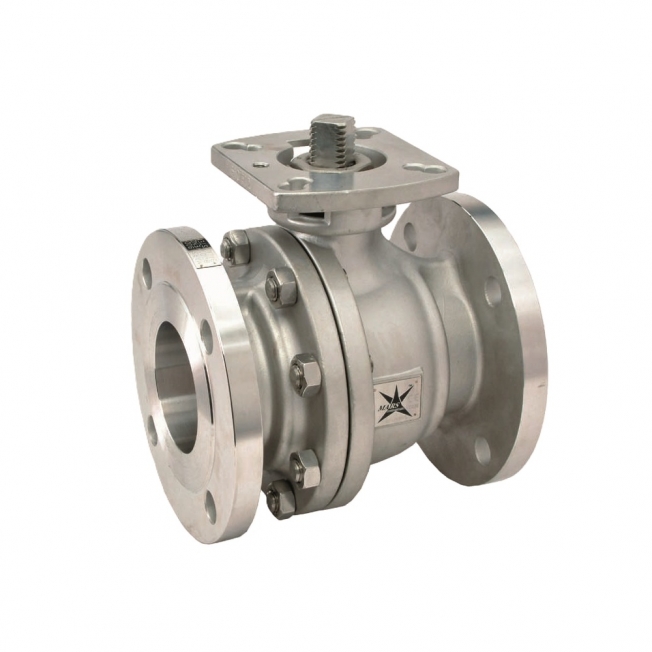

Configure onlineSeries 90D
Design
2-piece fire safe flanged
Port
Full port
Size
1/2" – 12"
Pressure Rating
ANSI Class 150/300, PN16/40, JIS 10K/20K
Body
CF8M / WCB
Seats
PTFE / RTFE (others on request)
Fire safe
API 607, 7th Edition

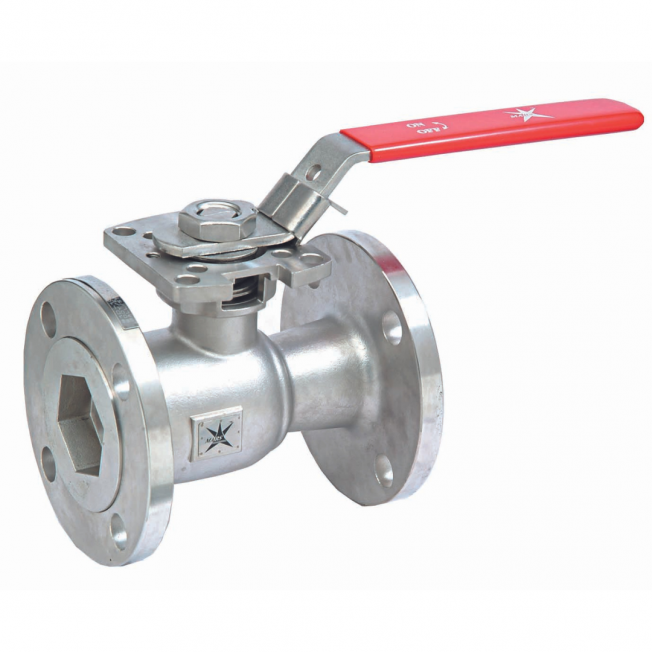

Configure onlineSeries 91D
Design
Uni-body fire safe flanged
Port
Reduced port
Size
1/2" – 6"
Pressure Rating
ANSI Class 150/300
Body
CF8M / WCB
Seats
PTFE / RTFE (others on request)
Fire safe
API 607, 7th Edition
