MARS Ball Valves
Compact, high-pressure stainless steel one-piece ball valves. Choose a series to configure sizes, ends and options.
8
One-piece series
2,000 PSI
highest rating
Fire safe
options available
Direct mount
options available

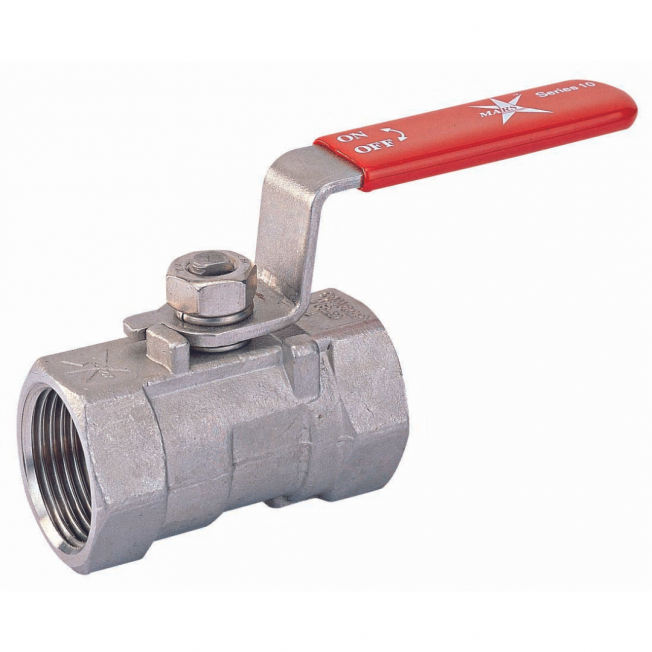

Configure onlineSeries 10-10
Design
1-piece
Port
Reduced port
Size
1/4" – 2"
Pressure Rating
800 PSI
Body
SS316 (CF8M)
Seats
PTFE
Ends
NPT, BSP, BSPT

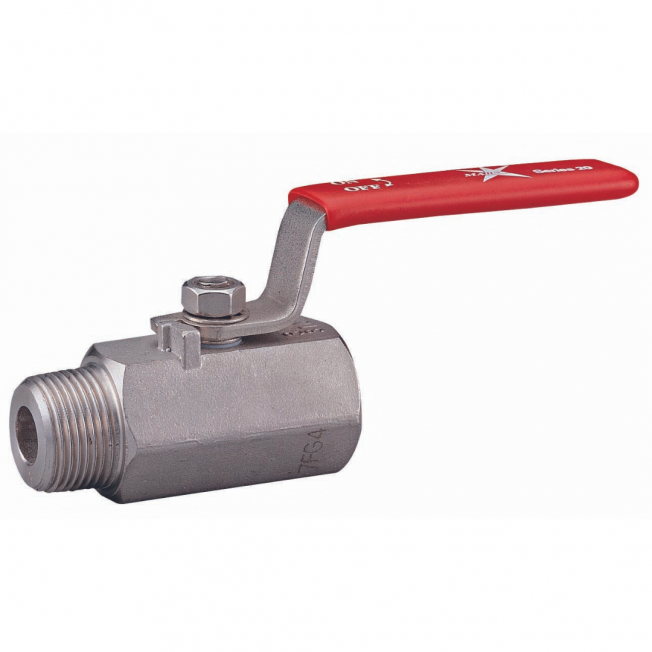

Configure onlineSeries 10-30
Design
1-piece
Port
Reduced port
Size
1/4" – 1"
Pressure Rating
800 PSI
Body
CF8M
Seats
PTFE
Ends
NPT, BSP, BSPT

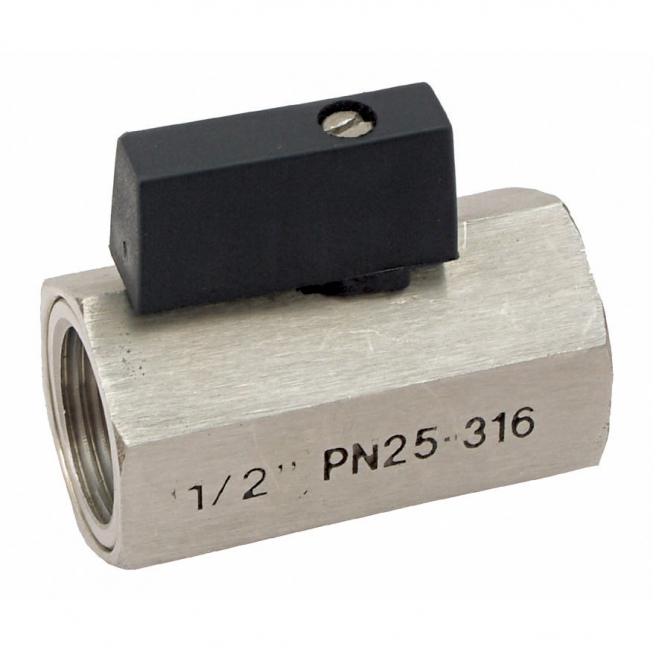

Configure onlineSeries 10-40
Design
1-piece
Port
Reduced port
Size
1/8" – 1/2"
Pressure Rating
PN50
Body
CF8M
Seats
PTFE
Ends
NPT, BSP, BSPT (female-female thread)

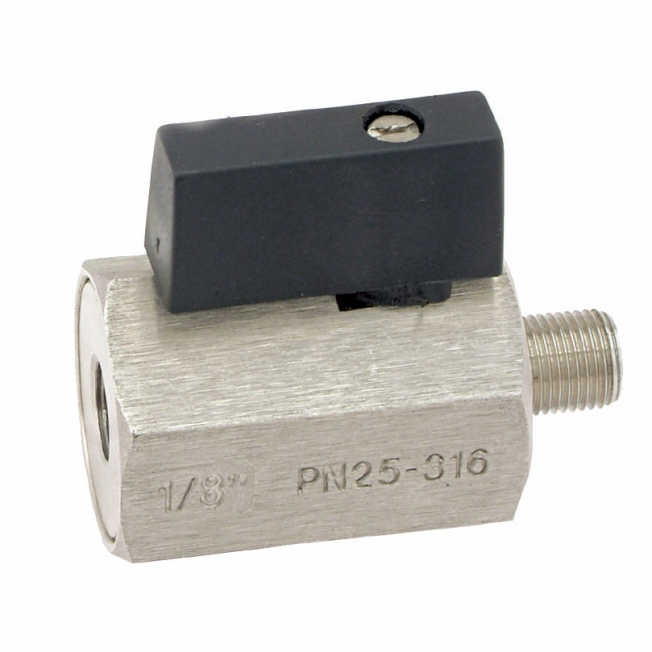

Configure onlineSeries 10-50
Design
1-piece
Port
Reduced port
Size
1/8" – 1/2"
Pressure Rating
PN50
Body
CF8M
Seats
PTFE
Ends
NPT, BSP, BSPT (female-male thread)

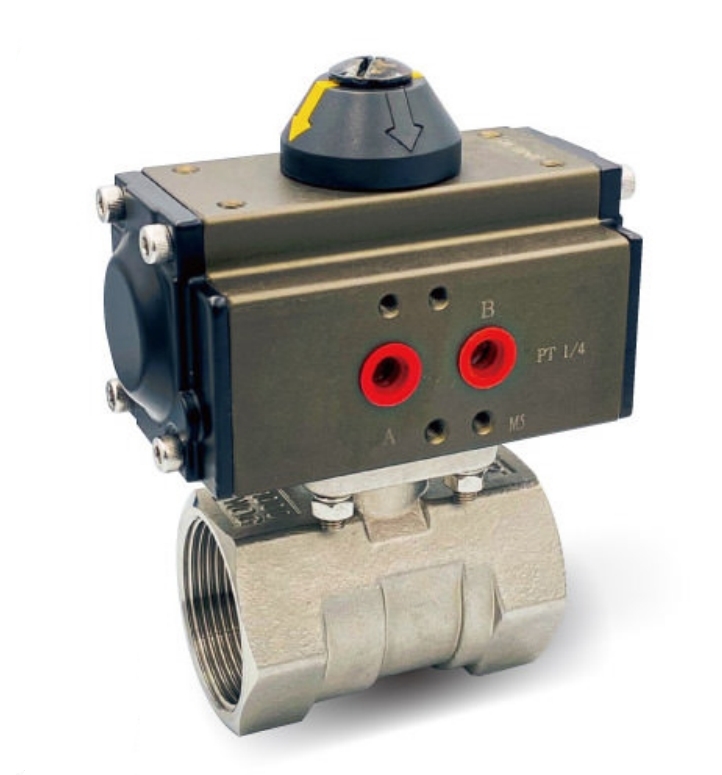

Configure onlineSeries F10-20
Design
1-piece direct mount
Port
Reduced port
Size
1/4" – 2"
Pressure Rating
1000 PSI
Body
CF8M
Seats
PTFE
Ends
NPT, BSP, BSPT

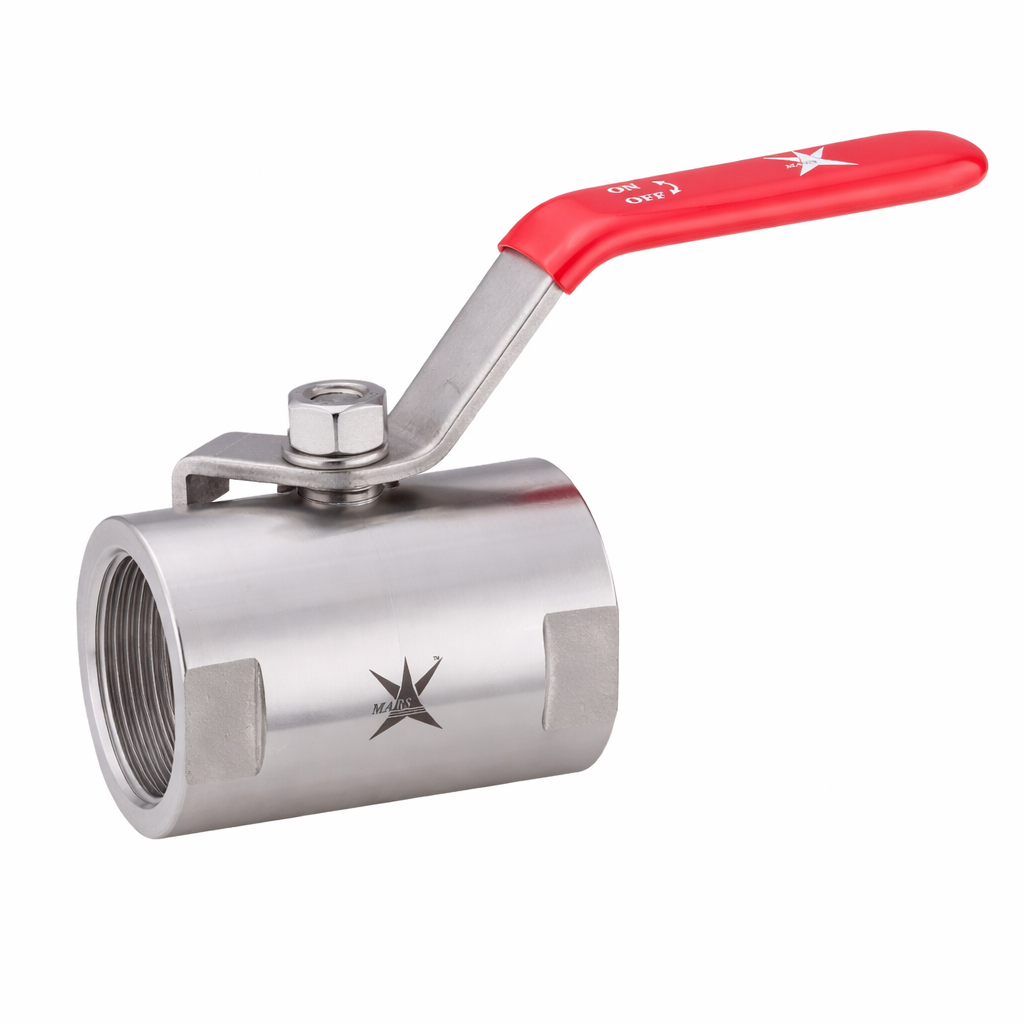

Configure onlineSeries F10-30
Design
1-piece
Port
Reduced port
Size
1/4" – 2"
Pressure Rating
1000 PSI
Body
CF8M / WCB
Seats
PTFE / RTFE / TFM1600
Ends
NPT, BSP, BSPT

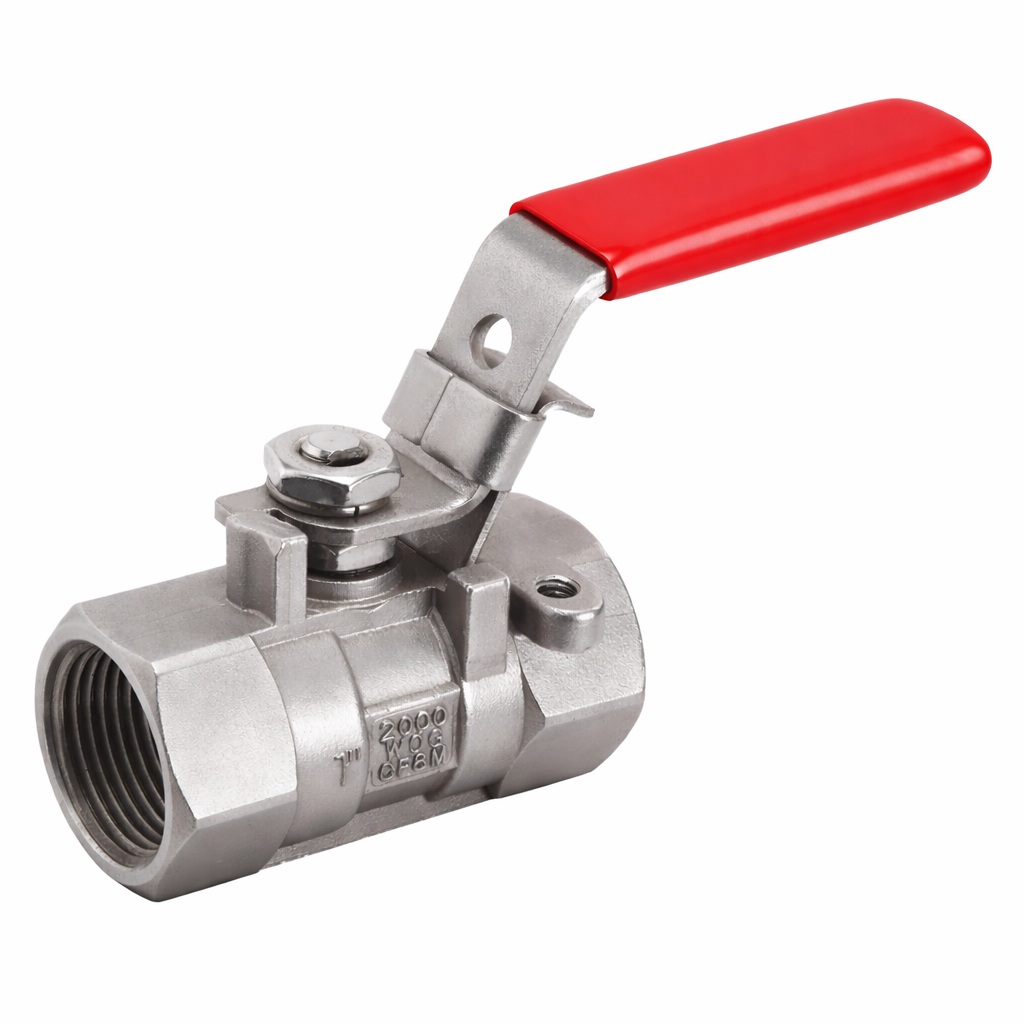

Configure onlineSeries F10-50
Design
1-piece
Port
Reduced port
Size
1/4" – 2"
Pressure Rating
2000 PSI
Body
CF8M
Seats
PTFE / RTFE
Ends
NPT, BSP, BSPT

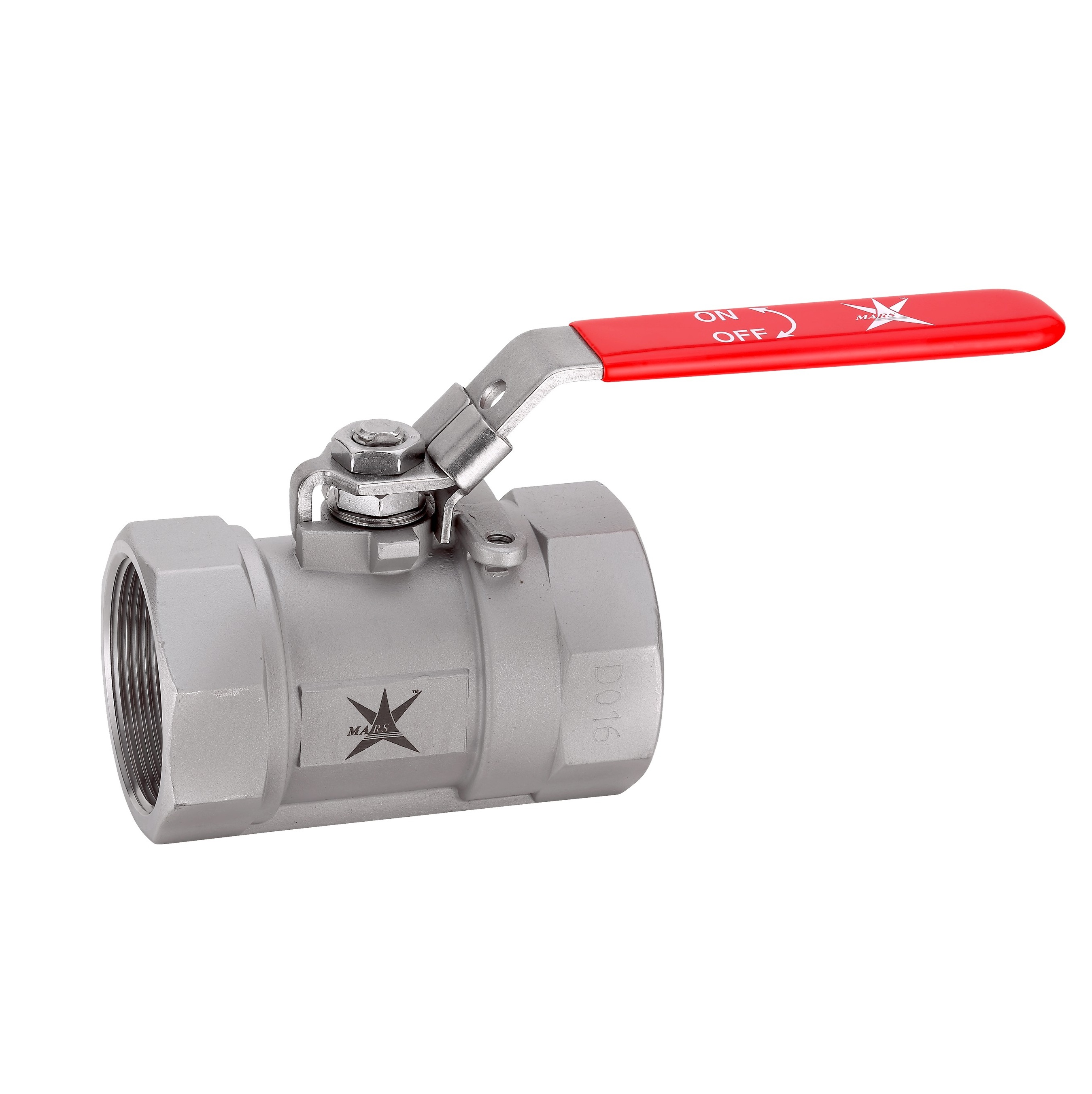

Configure onlineSeries F10-60
Design
1-piece fire safe
Port
Reduced port
Size
1/4" – 2"
Pressure Rating
2000 PSI
Body
CF8M / WCB
Seats
PTFE / RTFE
Ends
NPT, BSP, BSPT
Fire safe
API 607,4th Edition
| Series | Port | Pressure | Mounting | Fire safe |
|---|---|---|---|---|
| Series 10-10 | Reduced port | 800 PSI | Standard | — |
| Series 10-30 | Reduced port | 800 PSI | Standard | — |
| Series 10-40 | Reduced port | PN50 | Standard | — |
| Series 10-50 | Reduced port | PN50 | Standard | — |
| Series F10-20 | Reduced port | 1000 PSI | Direct mount | — |
| Series F10-30 | Reduced port | 1000 PSI | Standard | — |
| Series F10-50 | Reduced port | 2000 PSI | Standard | — |
| Series F10-60 | Reduced port | 2000 PSI | Standard | API 607 |
Used in: General machinery and OEM
