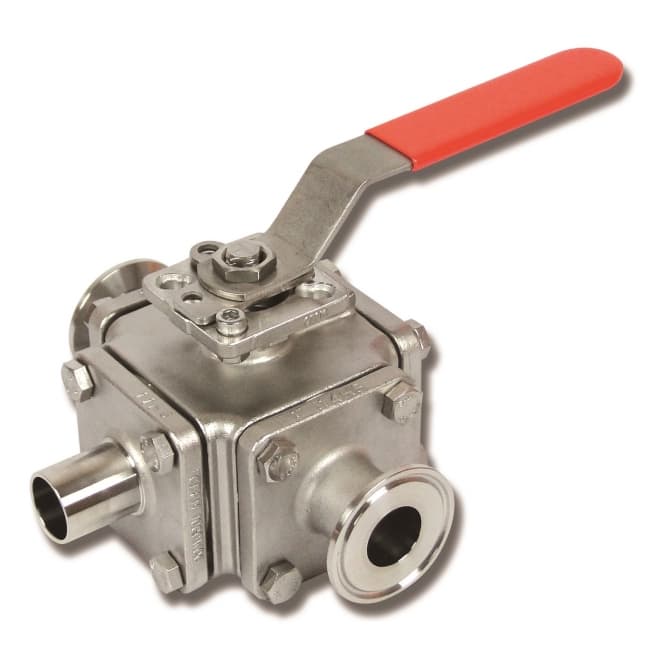

A hygienic multi-port ball valve in 316L stainless steel for flow diversion and mixing in sanitary process systems. Available in L-port and T-port configurations with tri-clamp ends and electropolished internal surfaces meeting FDA and 3-A standards.
Specifications
Design
3-way sanitary
Port
L-port / T-port
Size
1/2" ~ 3"
Pressure Rating
150 PSI max.
Body
316L Stainless Steel
Seats
PTFE / RTFE
Ends
Tri-Clamp / Weld
Standard
FDA / 3-A
Surface Finish
Ra ≤ 0.8μm
Temperature Range
-10°C to +140°C
Features
Applications
Flow diversion
Flow mixing
Pharmaceutical
Food and beverage
Biotechnology
