MARS Ball Valves
Two-piece ball valves rated from 3000 to 6000 PSI for high pressure industrial service.
6
2-piece series
6,000 PSI
highest rating
Fire safe
options available
Direct mount
options available

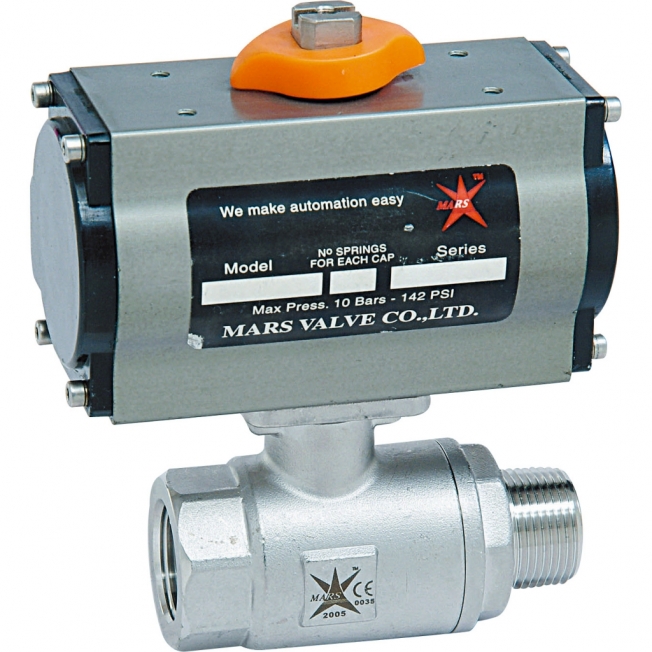

Series 24
Design
2-piece Direct Mount
Port
Reduced port
Size
1/4" – 2"
Pressure Rating
3000 PSI
Body
CF8M / WCB
Seats
Delrin / Peek
Ends
Female x Female/Male x Male thread (NPT, BSP, BSPT)

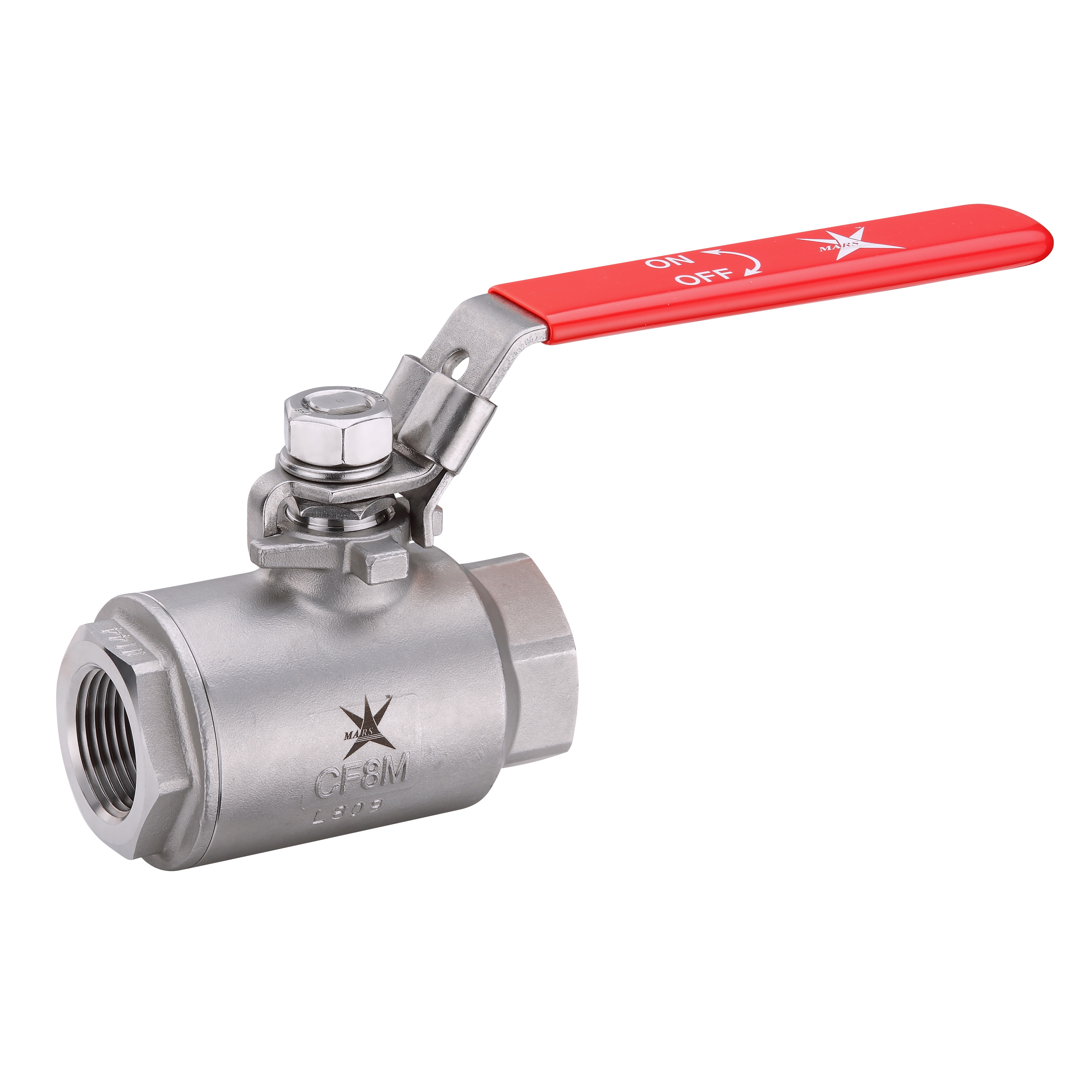

Configure onlineSeries F21-70
Design
2-piece Fire Safe
Port
Full port
Size
1/4" – 2"
Pressure Rating
3000 PSI
Body
CF8M / WCB
Seats
Delrin / Peek
Ends
NPT, BSP, BSPT
Fire safe
API 607, 5th Edition

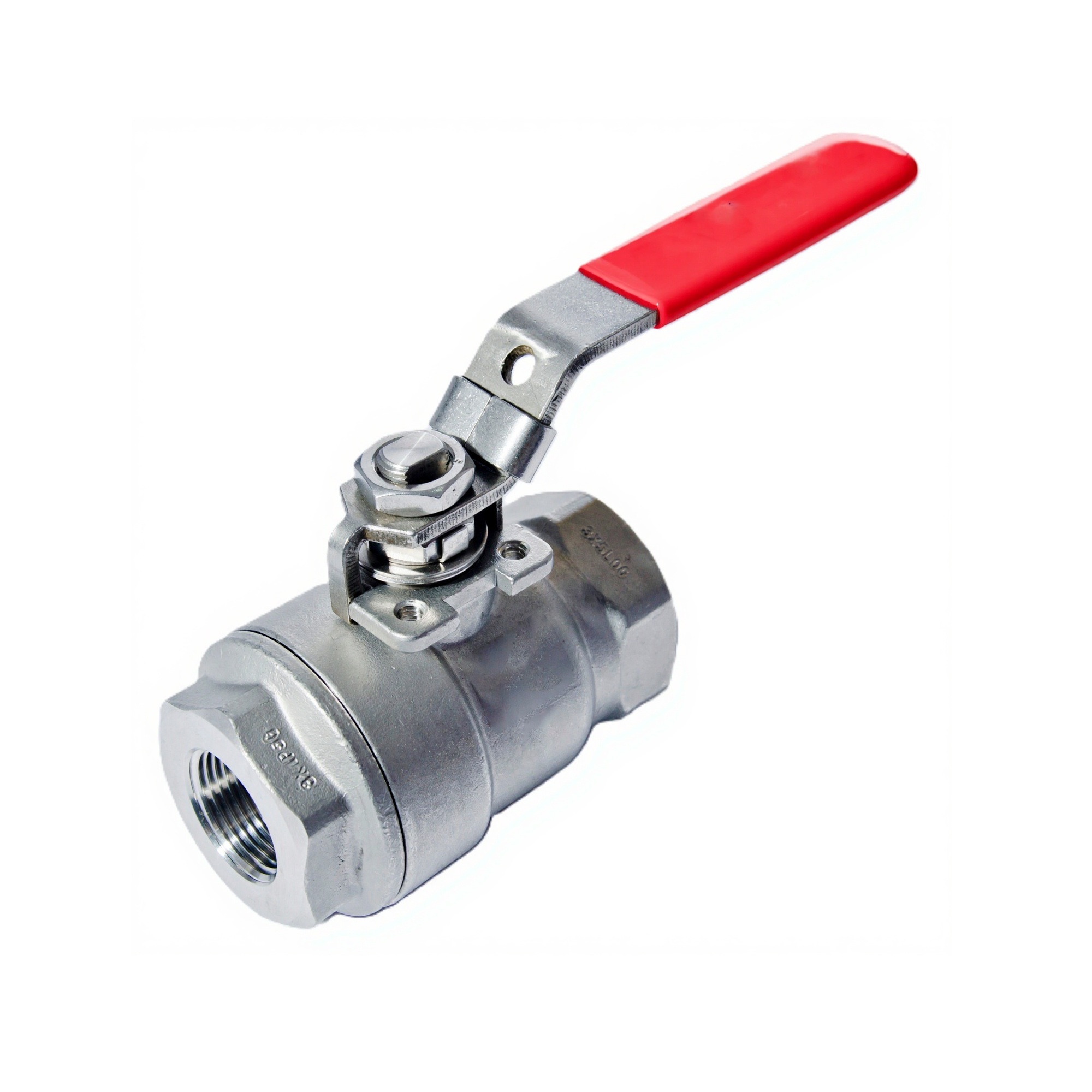

Configure onlineSeries F21-90
Design
2-piece
Port
Full port
Size
1/4" – 1 1/2"
Pressure Rating
6000 PSI
Body
CF8M / WCB
Seats
Delrin+5% carbon
Ends
NPT, BSP, BSPT

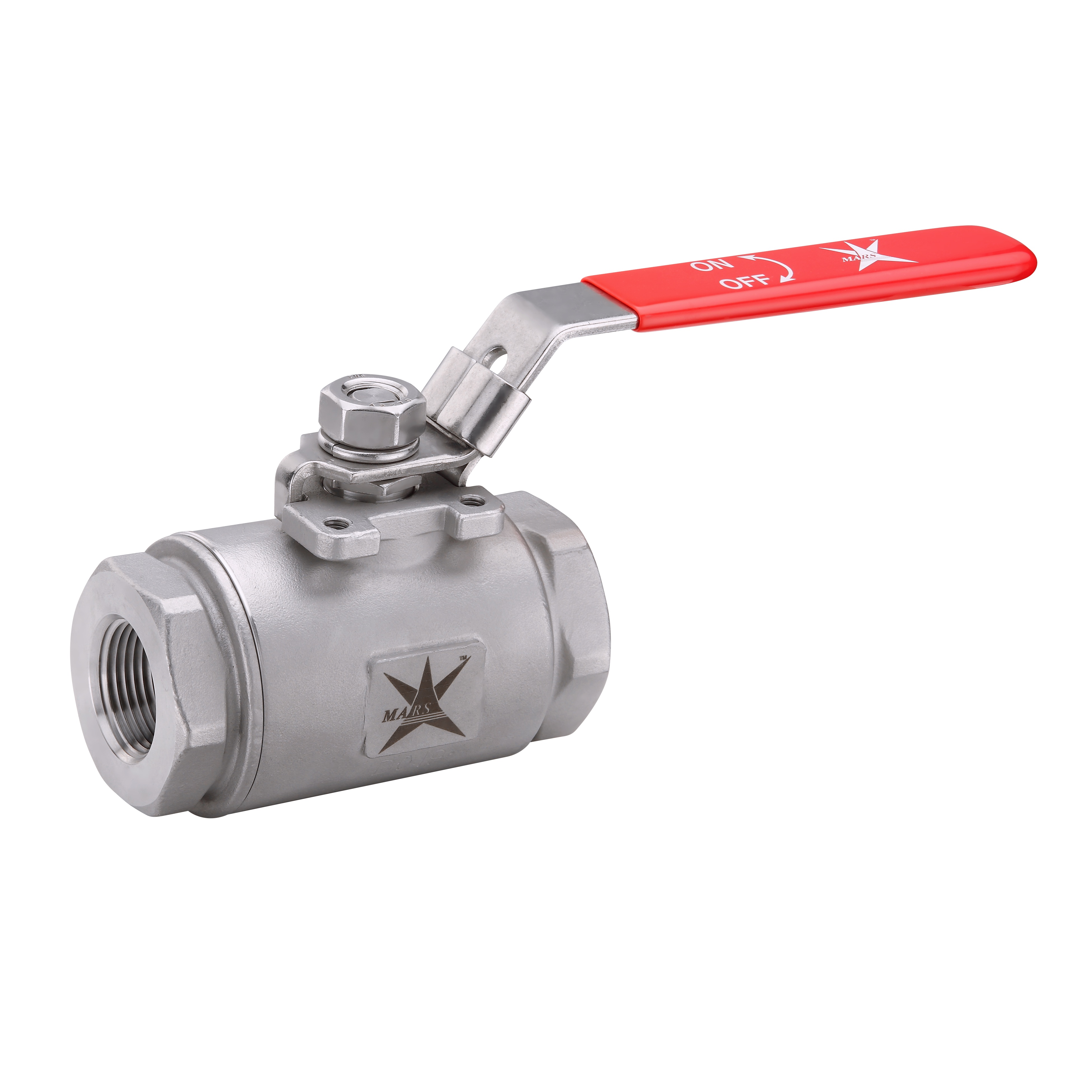

Configure onlineSeries F21-9K
Design
2-piece Fire Safe
Port
Reduced port
Size
1/4" – 2"
Pressure Rating
6000 PSI
Body
CF8M / WCB
Seats
Delrin / Peek
Ends
NPT, BSP, BSPT
Fire safe
API 607, 5th Edition

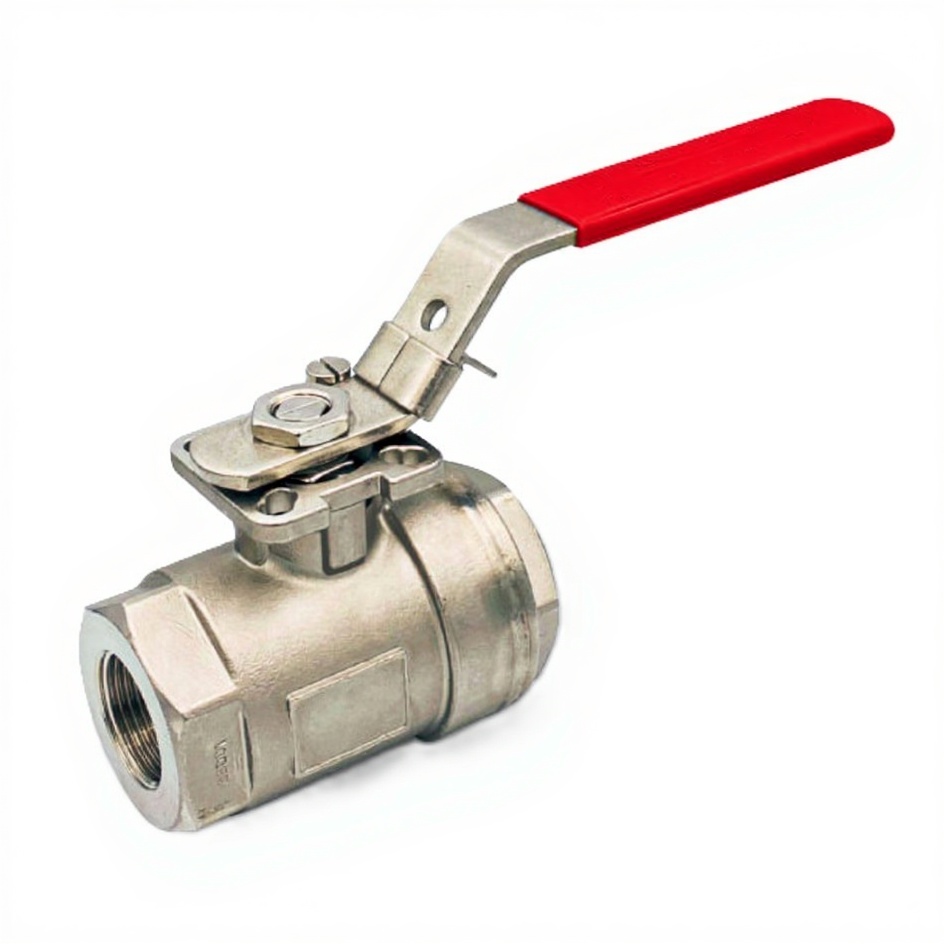

Configure onlineSeries F22-40
Design
2-piece Direct Mount
Port
Full port
Size
1/4" – 2"
Pressure Rating
3600 PSI
Body
CF8M
Seats
Delrin / Peek
Ends
NPT, BSP, BSPT
Stem
17-4ph
Configure onlineSeries F22-50
Design
2-piece Direct Mount
Port
Full port
Size
1/4" – 2"
Pressure Rating
6000 PSI
Body
CF8M
Seats
Delrin / Peek
Ends
NPT, BSP, BSPT
Stem
17-4ph
