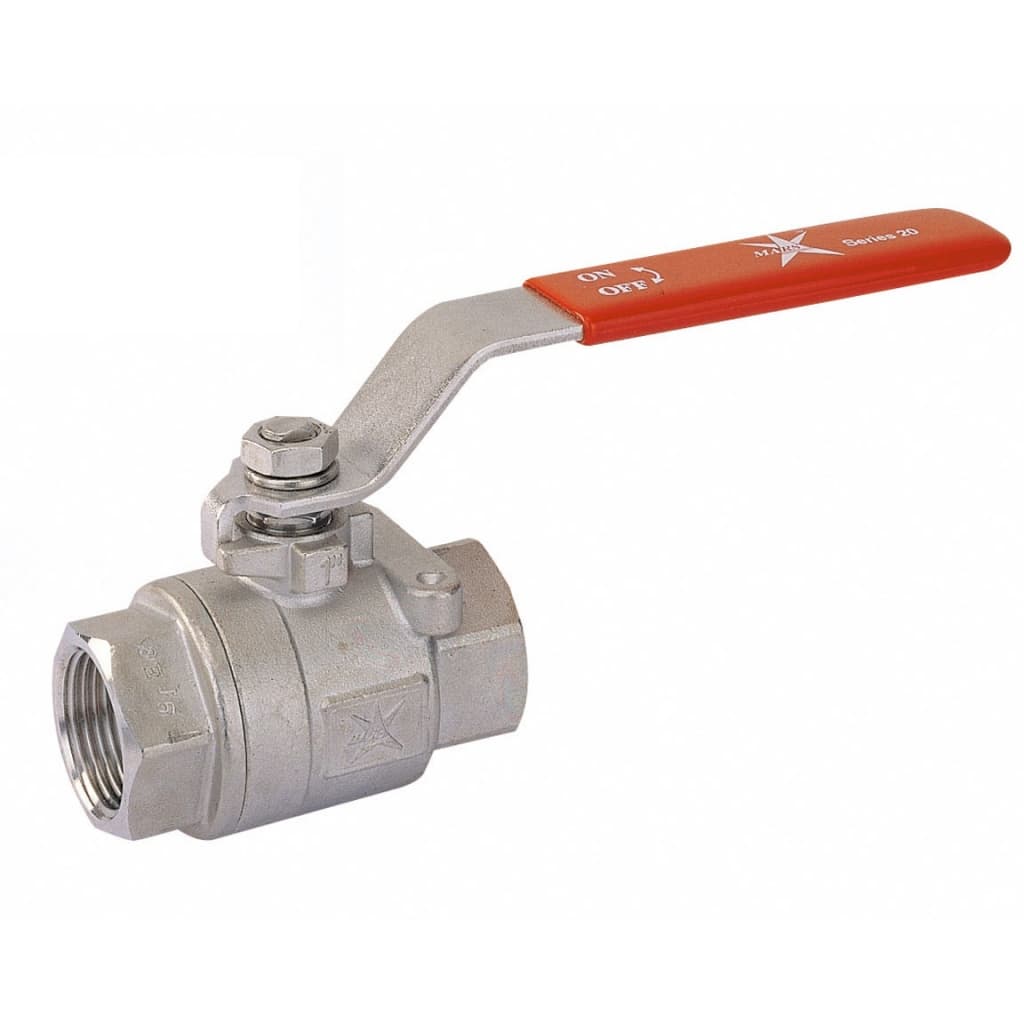

Our Mars Series 20-40, Full Bore Female / Female screwed ball valve is a non-maintainable heavy duty two piece, general isolating valve, providing safe operation for both general and industrial chemical applications. A reliable valve with CF8M Stainless Steel body and reinforced PTFE seat. Reinforced seat ensures tight 'shut-off' and versatility over a wide range of media. Features a blow-out proof stem and insulated grip, lockable lever handle.
Body and Ball in Stainless Steel
Screwed 1/4" to 2" BSP or NPT
Heavy duty, full bore, two piece
Available in Screwed BSP or NPT, sizes 1/4" to 2"
Temperature range: -20°C to +200°C
Operating pressure: 2000 PSI (1/4" to 1") and 1500 PSI (1 1/4" to 2")
Movement: 90° turn
Investment cast with low torque
MARS Ball Valves
2 Piece, Full Bore, Female x Female
Sizes
1/4" – 2"
Pressure
1500 PSI – 2000 PSI
Body
Stainless Steel (CF8M)
Seat
Reinforced PTFE
0 of 4 chosen
End Connection
Size
Operating Pressure
Lock
