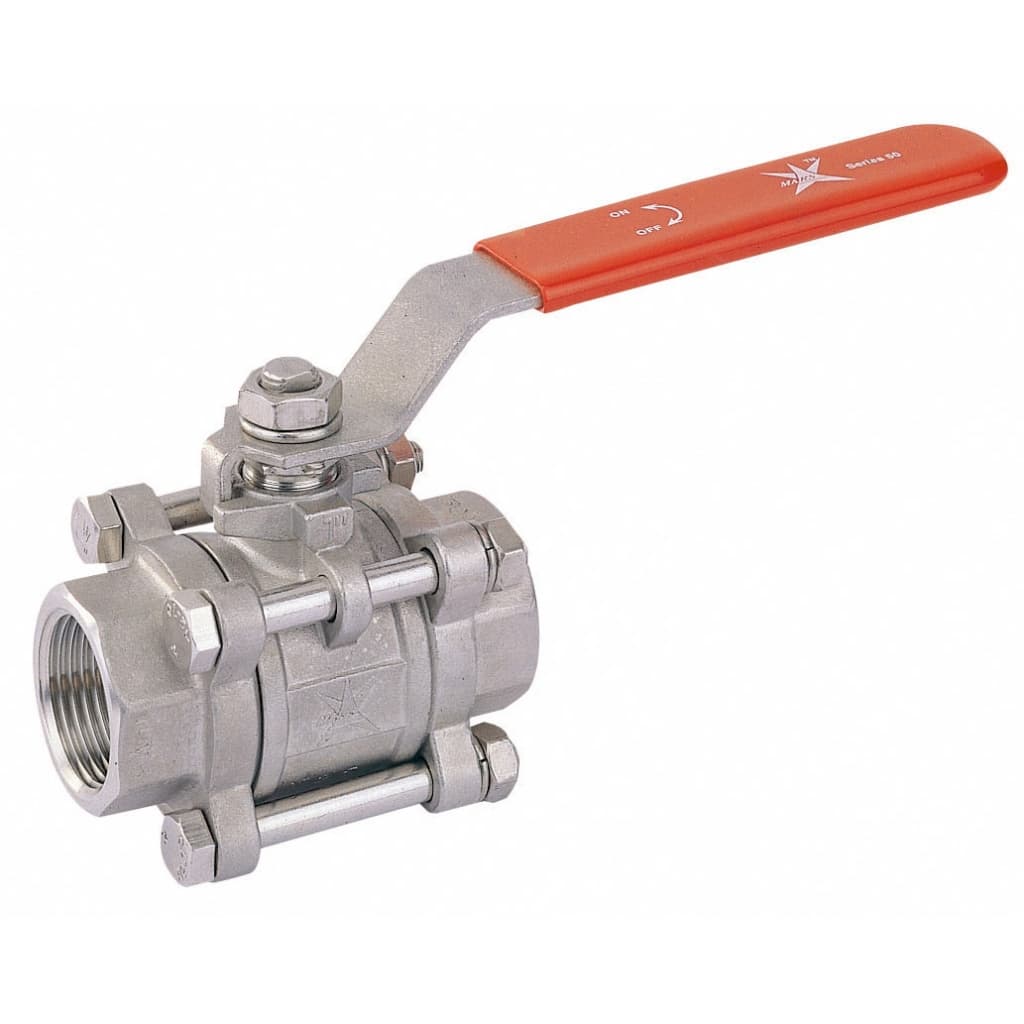

The Mars Series 50 is a 3-piece, full-bore, fully maintainable ball valve with a blow-out proof stem and lockable lever handle. SS316 / CF8M body with steam-rated carbon-filled R-PTFE seats, for shut-off and isolation of low-temperature steam duty and medium flows. Screwed BSP, NPT, Socket Weld or Butt Weld ends, 1/4" to 4". Manual operation only.
3-piece full bore, fully maintainable in-line
Blow-out proof stem
Steam rated carbon-filled R-PTFE seats
Insulated grip, lockable manual lever handle, 90° turn
Ends: BSP, NPT, Socket Weld, Butt Weld
Size 1/4" to 4"
1000 PSI (1/4" to 2"), 800 PSI (2 1/2" to 4")
Temperature -20°C to +200°C
Manual operation only
MARS Ball Valves
Three Piece, Full Bore, Female x Female
Sizes
1/4" – 4"
Pressure
800 PSI – 1000 PSI
Body
SS316 / CF8M Stainless Steel
Seat
Carbon Filled R-PTFE / PTFE
0 of 5 chosen
End Connection
Size
Seat
Lock
Operating Pressure
