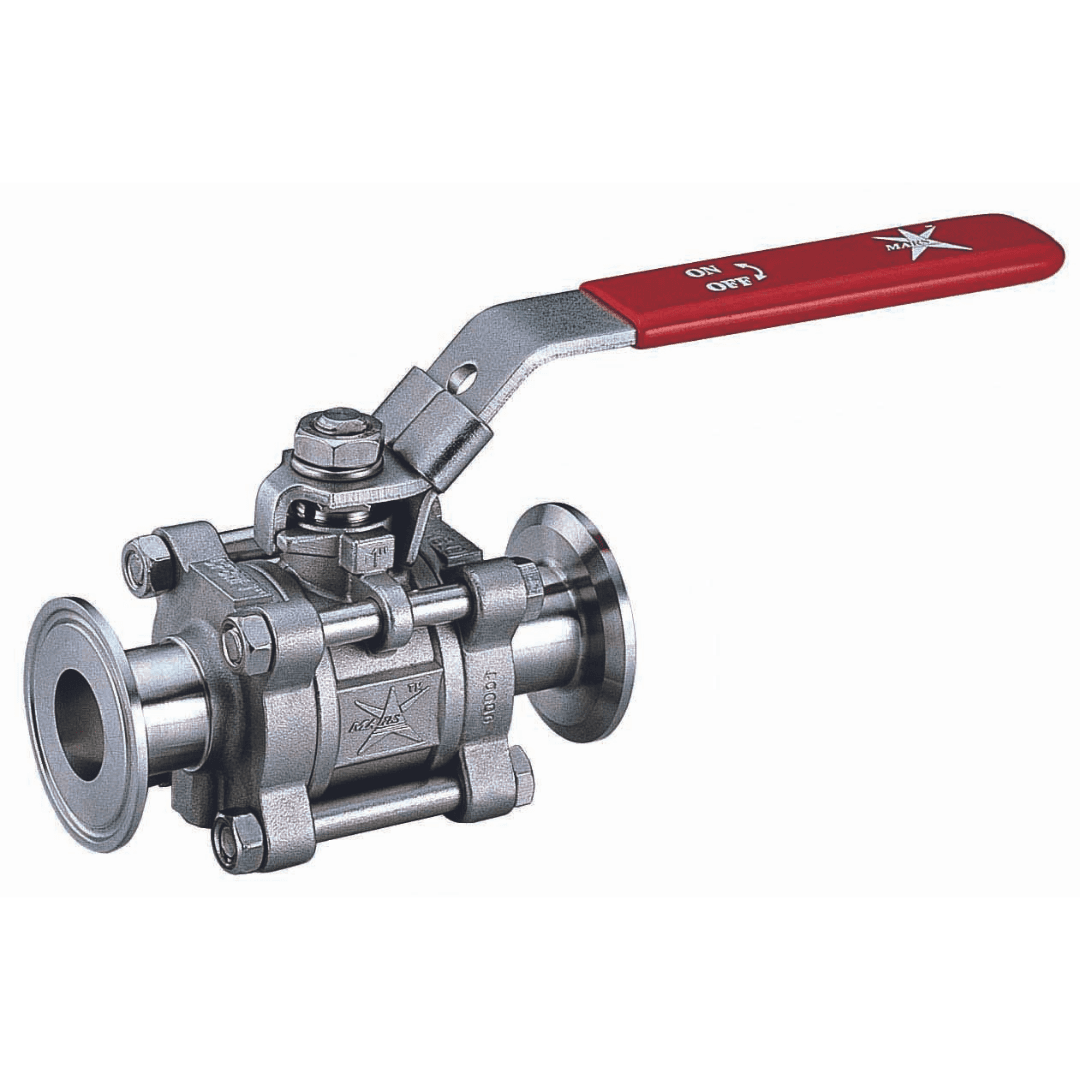

The Mars Series 50SN is a 3-piece, full-bore hygienic manual ball valve with cavity-filled PTFE seats and a swing-out body for in-line maintenance. CF8M body and ball with CF3M end cap, live-loaded stem packing, Tri-Clamp or short-welding ends, 1/2" to 4". FDA compliant and suitable for CIP / SIP cleaning. Manual operation only.
3-piece full bore hygienic design, manual only
FDA compliant, suitable for CIP / SIP cleaning
Fully maintainable, swing-out body for in-line service
Live loaded stem packing compensates for wear
Insulated grip, lockable manual lever, 90° turn
Tri-Clamp or short-welding ends
Size 1/2" to 4"
1000 PSI (1/2" to 2"), 800 PSI (2 1/2" to 4")
Temperature -20°C to 180°C
ATEX / Hygienic approved
MARS Ball Valves
Three Piece, Full Bore, Sanitary
Sizes
1/2" – 4"
Pressure
800 PSI – 1000 PSI
Body
CF8M Stainless Steel (CF3M end cap)
Seat
PTFE (cavity filler on request)
0 of 4 chosen
End Connection
Size
Seat
Operating Pressure
