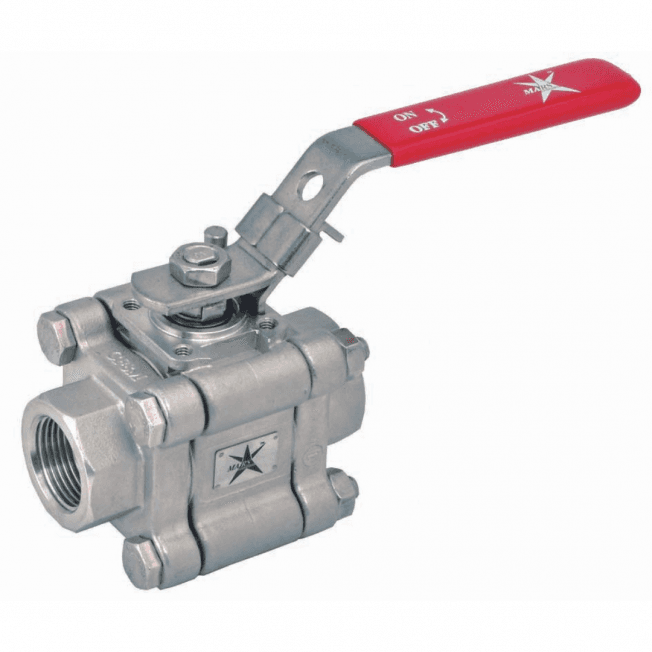

The Mars Series 83 is a 3-piece, heavy-duty fire-safe ball valve with fully enclosed body bolting (1/4" to 1 1/2"), an ISO 5211 mounting pad and a standard anti-static device. CF8M or WCB body with PTFE/RTFE seats, full or reduced port, 1/4" to 2 1/2". Rated 2000 PSI (1/4"-1" full bore) and 1500 PSI (1 1/4"-2" full bore).
3-piece heavy duty fire-safe design
Full port and reduced port options
CF8M or WCB body
PTFE / RTFE seats
Body bolting fully enclosed (1/4" to 1 1/2")
ISO 5211 mounting pad for actuation
Anti-static device standard
Size 1/4" to 2 1/2"
2000 PSI (1/4"-1" FB), 1500 PSI (1 1/4"-2" FB)
Fire-safe certified
MARS Ball Valves
Three Piece, Fire-Safe, Full / Reduced Port
Sizes
1/4" – 2 1/2"
Body
CF8M / WCB
Seat
PTFE / RTFE
0 of 4 chosen
Size
Port
Body Material
End Cap
