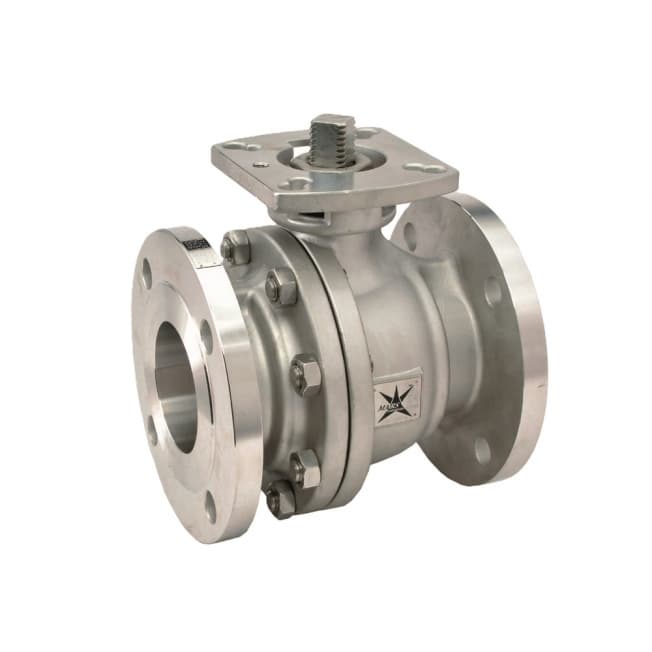

The Mars Series 90D is a high-performance, direct-mount flanged ball valve with an ISO 5211 mounting pad. Full port, in ANSI #300 (2F), ANSI #150 (90D-10) and PN10/40 & PN16 (90D-40) flange ratings, stainless (CF8M) or carbon (WCB) body, standard or fire-safe, 1/2" to 6".
High performance flanged ball valve, direct mount
Flange ratings: ANSI #300, ANSI #150, PN10/40 & PN16
Standard and fire-safe versions
Stainless (CF8M) or carbon (WCB) body
ISO 5211 mounting pad / DIN 3337 square stem
Full port
Size 1/2" to 6"
Available with or without handle
MARS Ball Valves
Two Piece, Flanged, Full Port, Direct Mount
Sizes
1/2" – 6" (Investment)
Body
CF8M / WCB
Seat
PTFE / RTFE
0 of 5 chosen
Flange Rating
Size
Version
Body Material
Handle
