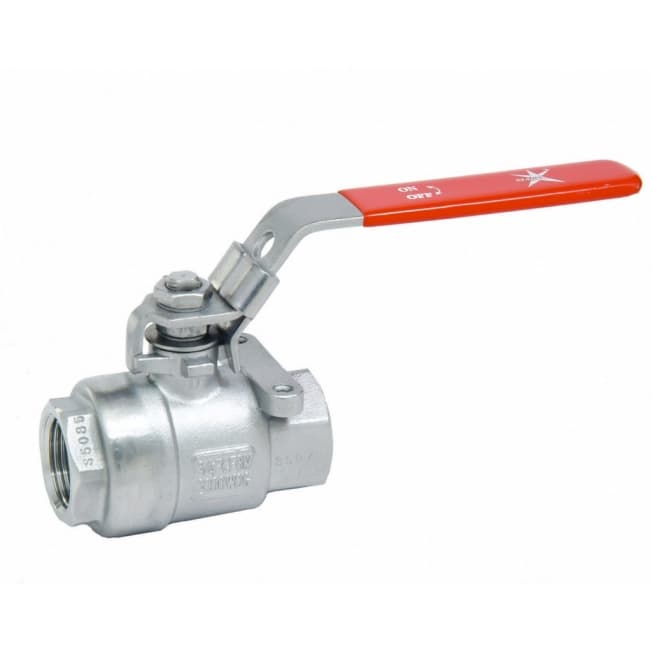

The Mars Series 28 is a 2-piece, full-port fire-safe ball valve with a seal-welded design and threaded ends, rated to 1000 PSI and certified to API 607 (7th Edition). CF8M or WCB body with PTFE/RTFE seats, in sizes 1/4" to 3". Optional NACE MR0175 and DIN 3202 M3 face-to-face on request.
2-piece full port fire-safe design
Seal welded body
Threaded ends (NPT, BSP, BSPT)
Rated to 1000 PSI
CF8M or WCB body
PTFE / RTFE seats
Size 1/4" to 3"
Fire-safe API 607, 7th Edition
Optional NACE MR0175
Optional DIN 3202 M3 face-to-face
MARS Ball Valves
Two Piece, Fire-Safe, Full Port, Seal Welded
Sizes
1/4" – 3"
Pressure
1000 PSI
Body
CF8M / WCB
Seat
PTFE / RTFE
0 of 3 chosen
End Connection
Size
Operating Pressure
