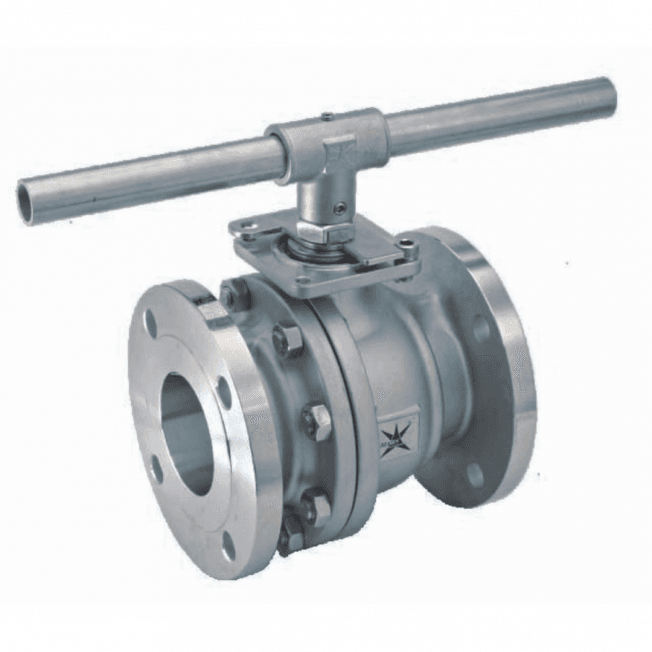

The Mars Series 90 is a 2-piece, full-port fire-safe flanged ball valve rated ANSI Class 150/300, PN16/40 and JIS 5K, certified to API 607 (7th Edition). Face-to-face per ANSI B16.10 / EN 558-1 (GR.1/GR.27, DIN 3202 F1/F4/F5), in sizes 1/2" to 4". CF8M, WCB or special alloy body with PTFE/RTFE seats. Available with 30/60/90 degree V-port ball for flow control. Optional NACE MR0175 on request.
2-piece full port fire-safe flanged design
Flange ratings: ANSI #150/#300, PN16/40, JIS 5K
Face-to-face: ANSI B16.10, EN 558-1 (GR.1/GR.27, DIN 3202 F1/F4/F5)
Rated to API 607, 7th Edition
CF8M / WCB / Special Alloy body
PTFE / RTFE seats
Size 1/2" to 4"
Optional 30/60/90 degree V-port ball
Optional NACE MR0175
MARS Ball Valves
Two Piece, Fire-Safe, Flanged, Full Port
Sizes
1/2" – 4"
Body
CF8M / WCB / Special Alloy
Seat
PTFE / RTFE
0 of 2 chosen
Flange Rating
Size
