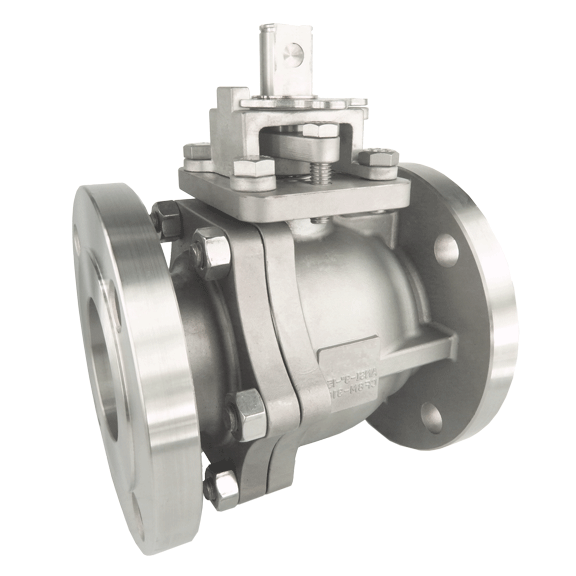

The Mars Series 93 is a 2-piece, full-port economical flanged ball valve for large bores (5" to 12"), rated ANSI Class 150/300, PN16/40 and JIS 10K/20K. Face-to-face per ANSI B16.10 / EN 558-1 (GR.1/GR.27, DIN 3202 F1/F4/F5). CF8M, WCB or special alloy body with PTFE/RTFE seats (metal seat optional).
2-piece full port economical flanged design
Flange ratings: ANSI #150/#300, PN16/40, JIS 10K/20K
Face-to-face: ANSI B16.10, EN 558-1 (GR.1/GR.27, DIN 3202 F1/F4/F5)
CF8M / WCB / Special Alloy body
PTFE / RTFE seats (metal seat optional)
Size 5" to 12"
MARS Ball Valves
Two Piece, Economical, Flanged, Full Port
Sizes
5" – 12"
Body
CF8M / WCB / Special Alloy
Seat
PTFE / RTFE (Metal seat optional)
0 of 2 chosen
Flange Rating
Size
