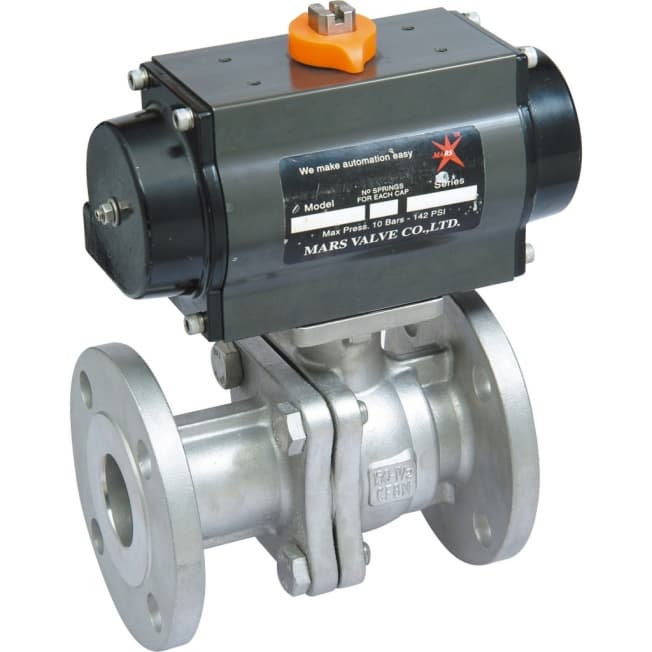

The Mars Series 94D is a 2-piece, full-port economical flanged ball valve with a Direct Mount design for small bores (1/2" to 4"), rated ANSI Class 150 / PN16. Face-to-face per ANSI B16.10 / EN 558-1 (GR.1/GR.27, DIN 3202 F1/F4/F5). CF8M or WCB body with PTFE/RTFE seats.
2-piece full port economical flanged design
Direct Mount design
Flange ratings: ANSI #150, PN16
Face-to-face: ANSI B16.10, EN 558-1 (GR.1/GR.27, DIN 3202 F1/F4/F5)
CF8M / WCB body
PTFE / RTFE seats
Size 1/2" to 4"
MARS Ball Valves
Two Piece, Economical, Flanged, Full Port
Sizes
1/2" – 4"
Body
CF8M / WCB
Seat
PTFE / RTFE
