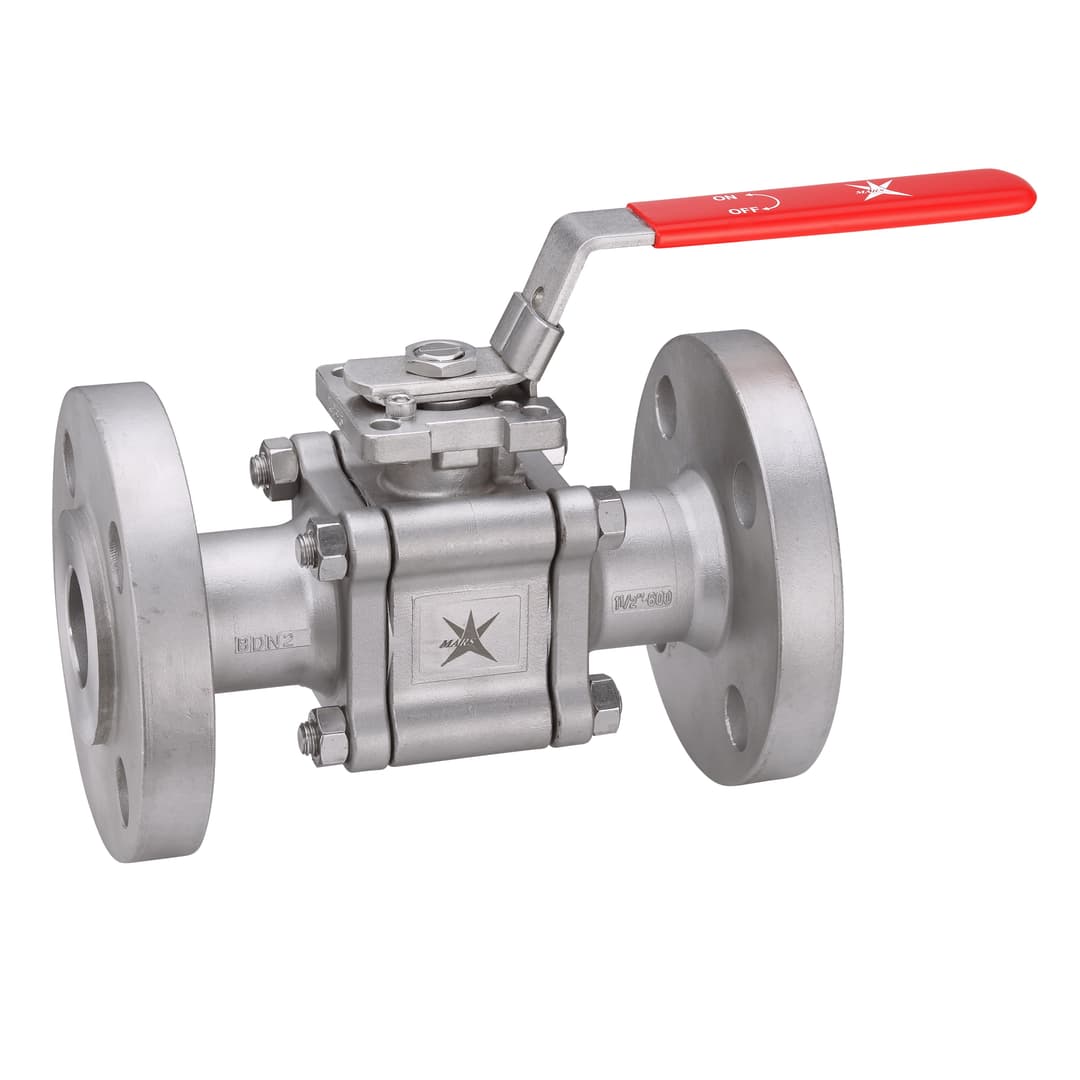

The Mars Series F88 is a 3-piece, full-port, direct-mount flanged ball valve rated ANSI Class 600/900, certified fire-safe and to ISO 15848-1, conforming to ASME B16.34 with face-to-face per B16.10. CF8M, WCB or special alloy body with Delrin/Peek/TFM1600 seats, in sizes 1/2" to 4". Optional NACE MR0175 on request.
3-piece full port direct mount flanged design
Flange ratings: ANSI #600, ANSI #900
Fire-safe certified
ISO 15848-1 certified
Conforms to ASME B16.34; face-to-face B16.10
CF8M / WCB / Special Alloy body
Delrin / Peek / TFM1600 seats
Optional NACE MR0175
Size 1/2" to 4"
MARS Ball Valves
Three Piece, Direct Mount, Flanged, Fire-Safe, Full Port
Sizes
1/2" – 4"
Body
CF8M / WCB / Special Alloy
Seat
Delrin / Peek / TFM1600
0 of 2 chosen
Flange Rating
Size
