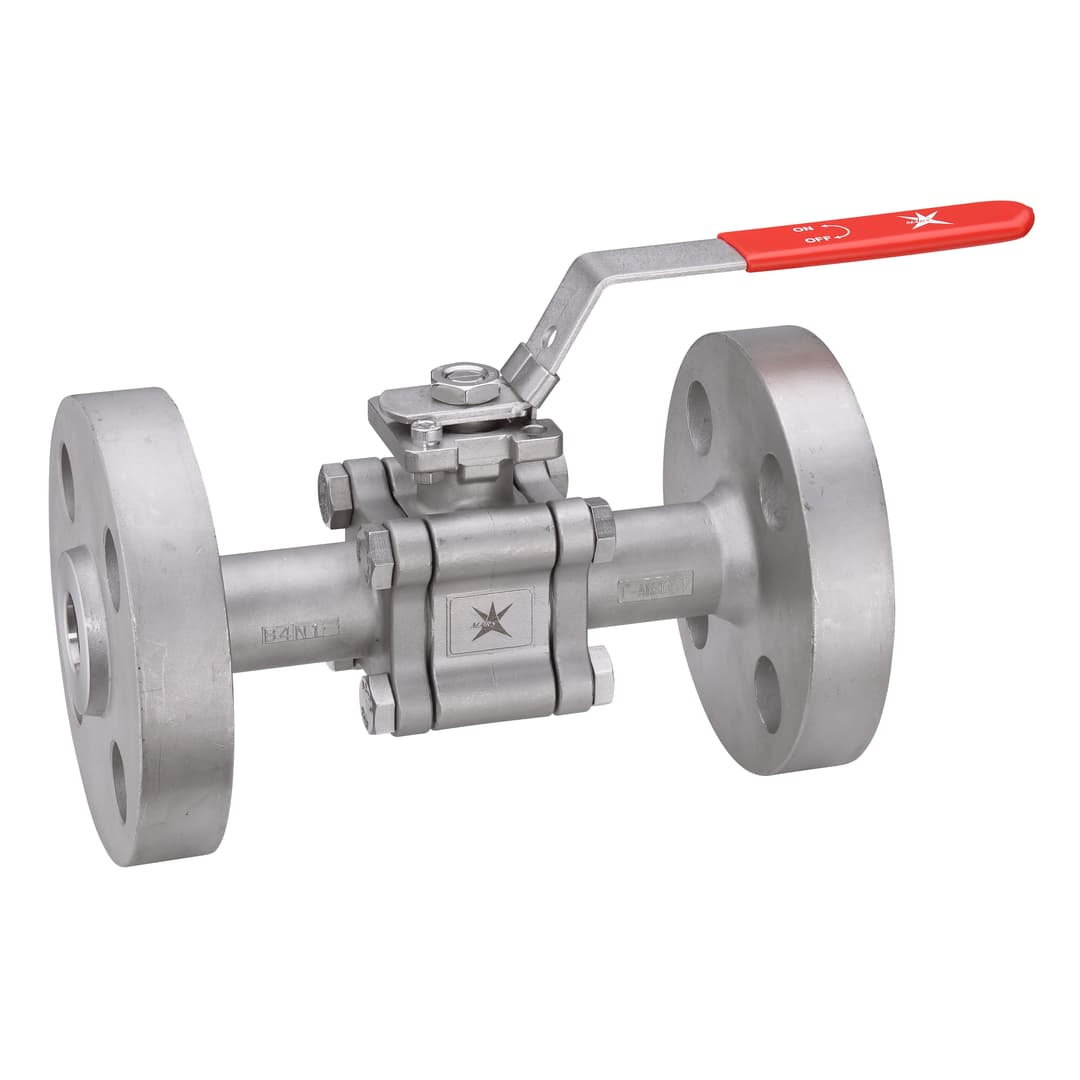

The Mars Series F89 is a 3-piece, full-port, direct-mount flanged ball valve rated ANSI Class 1500, certified fire-safe and to ISO 15848-1, conforming to ASME B16.34 with face-to-face per B16.10. CF8M or WCB body with Delrin/Peek seats, in sizes 1/2" to 3". Optional NACE MR0175 on request.
3-piece full port direct mount flanged design
Flange rating: ANSI #1500
Fire-safe certified
ISO 15848-1 certified
Conforms to ASME B16.34; face-to-face B16.10
CF8M / WCB body
Delrin / Peek seats
Optional NACE MR0175
Size 1/2" to 3"
MARS Ball Valves
Three Piece, Direct Mount, Flanged, Fire-Safe, Full Port
Sizes
1/2" – 3"
Body
CF8M / WCB
Seat
Delrin / Peek
0 of 2 chosen
Flange Rating
Size
