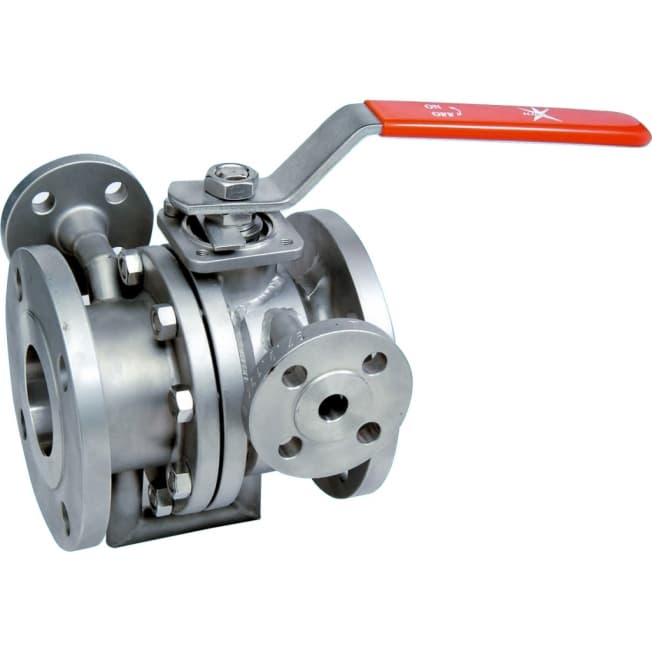

The Mars Series 90J is a 2-piece, full-port steam-jacketed flanged ball valve rated ANSI Class 150/300, PN16/40 and JIS 5K, in sizes 1/2" to 4". Face-to-face per ANSI B16.10 / EN 558-1 (GR.1/GR.27, DIN 3202 F1/F4/F5). CF8M body with 25% carbon+PTFE seats.
2-piece full port steam jacketed flanged design
Flange ratings: ANSI #150/#300, PN16/40, JIS 5K
Face-to-face: ANSI B16.10, EN 558-1 (GR.1/GR.27, DIN 3202 F1/F4/F5)
CF8M body
25% carbon + PTFE seats
Size 1/2" to 4"
MARS Ball Valves
Two Piece, Steam Jacketed, Flanged, Full Port
Sizes
1/2" – 4"
Body
CF8M
Seat
25% Carbon + PTFE
0 of 2 chosen
Flange Rating
Size
