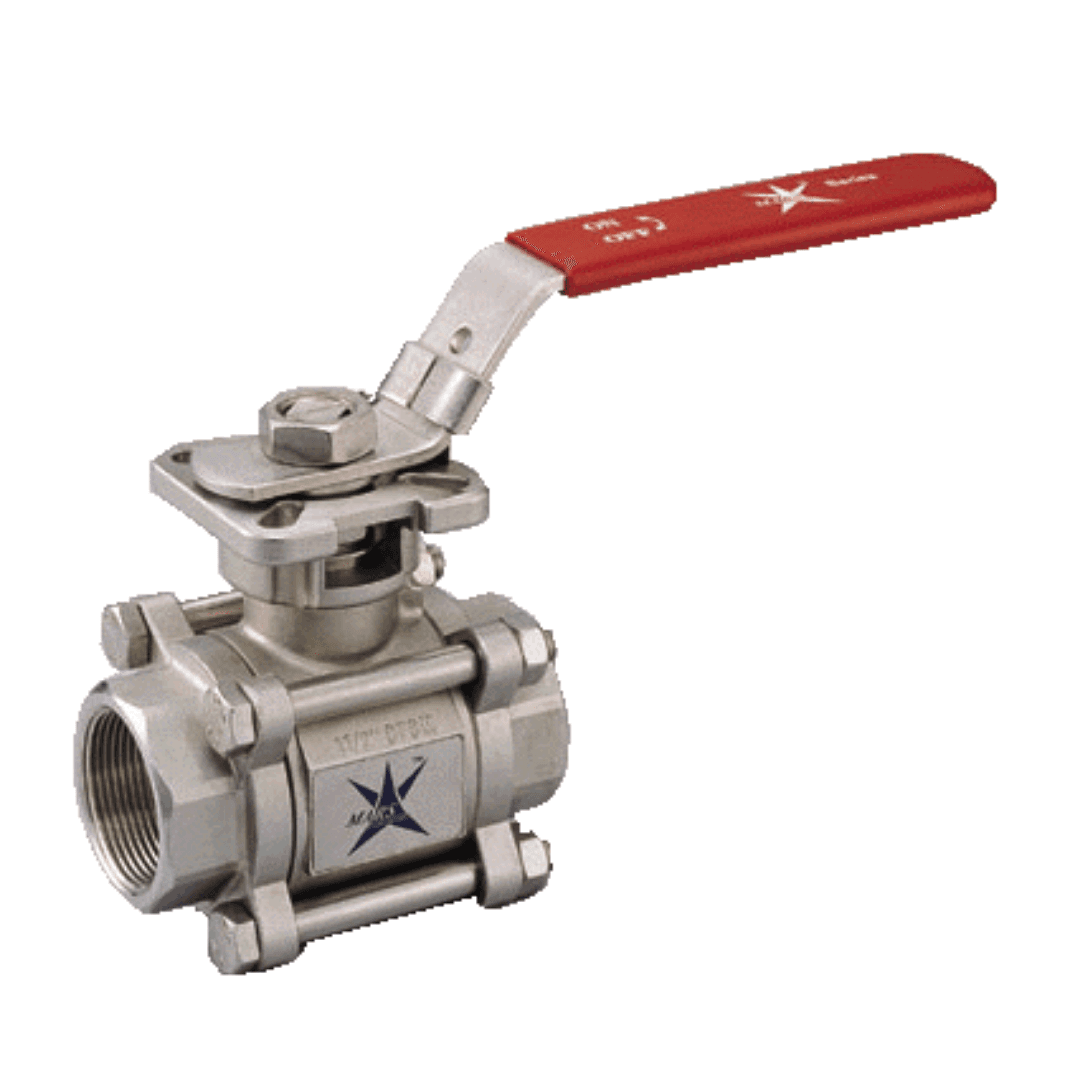

The Mars Series 77 is a 3-piece, full-bore high performance ball valve with an ISO 5211 direct mount pad for actuation. Investment cast CF8M / WCB body with reinforced PTFE seats, a swing-out body for in-line maintenance and live-loaded stem packing. Screwed BSP, NPT, Socket Weld or Butt Weld ends, 1/4" to 4".
3-piece full bore direct mount design
Fully maintainable, swing-out body for in-line service
Live loaded stem packing compensates for wear
ISO 5211 direct mount pad for actuation
Investment cast with low torque
Lockable manual lever handle, 90° turn
Ends: BSP, NPT, Socket Weld, Butt Weld
Size 1/4" to 4"
Rated to 1000 PSI, -20°C to 200°C
ATEX approved
MARS Ball Valves
Three Piece, Full Bore, Direct Mount, Female x Female
Sizes
1/4" – 4"
Pressure
1000 PSI
Body
CF8M / WCB Stainless Steel
Seat
Reinforced PTFE / PTFE
