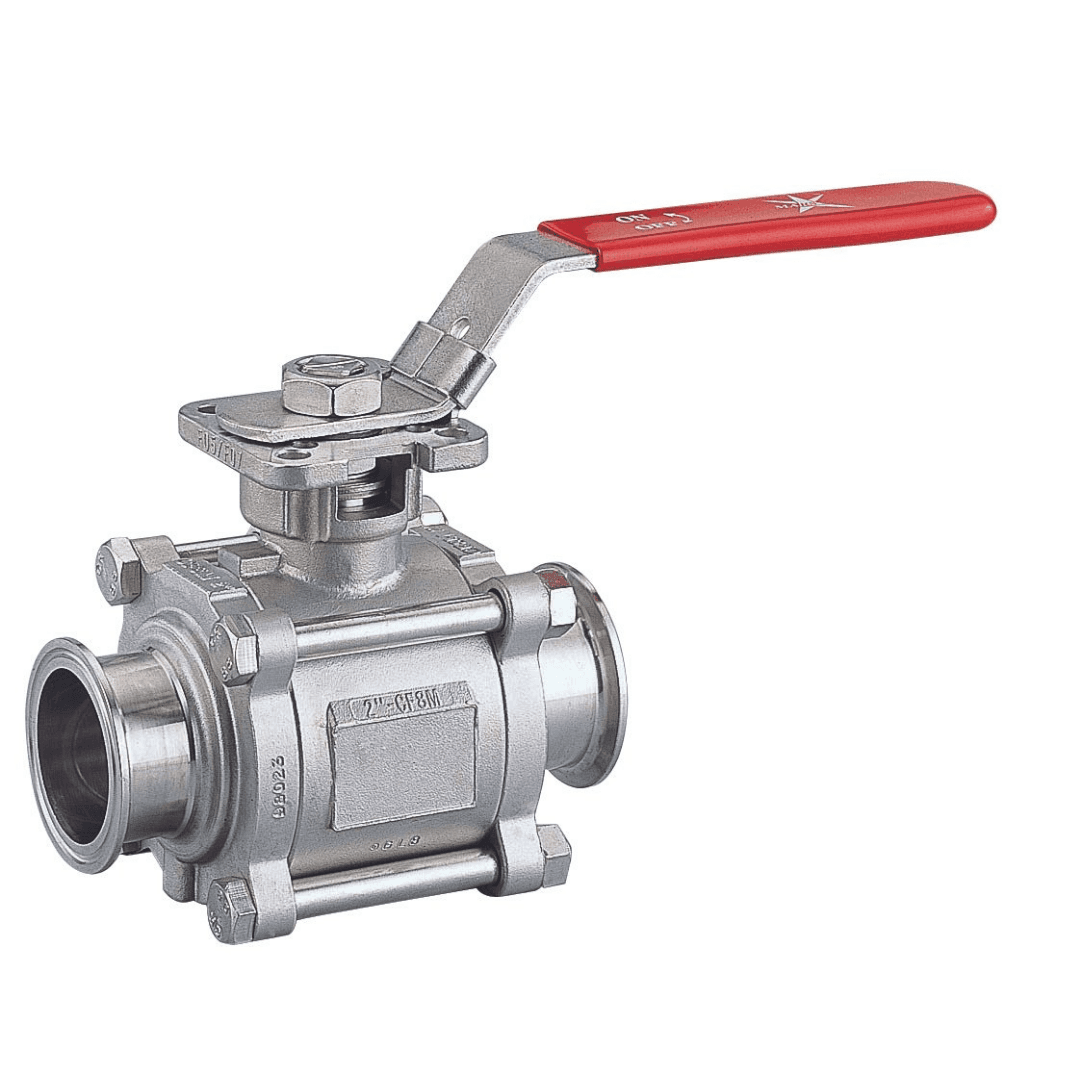

The Mars Series 77SN is a 3-piece, full-bore high performance sanitary ball valve with an ISO 5211 direct mount pad for actuation. CF3M stainless steel body with cavity-filled PTFE seats, a swing-out body for in-line maintenance and live-loaded stem packing. Tri-Clamp or short-welding ends, 1/2" to 4". FDA compliant and suitable for CIP / SIP cleaning.
3-piece full bore sanitary design
FDA compliant, suitable for CIP / SIP cleaning
Fully maintainable, swing-out body for in-line service
Live loaded stem packing compensates for wear
ISO 5211 direct mount pad for actuation
Tri-Clamp or short-welding ends
Size 1/2" to 4"
1000 PSI (1/2" to 2"), 800 PSI (2 1/2" to 4")
Temperature -20°C to 180°C
ATEX / Hygienic approved
MARS Ball Valves
Three Piece, Full Bore, Sanitary, Direct Mount
Sizes
1/2" – 4"
Pressure
800 PSI – 1000 PSI
Body
CF3M Stainless Steel
Seat
PTFE / RTFE (cavity filler on request)
0 of 4 chosen
End Connection
Size
Seat
Operating Pressure
