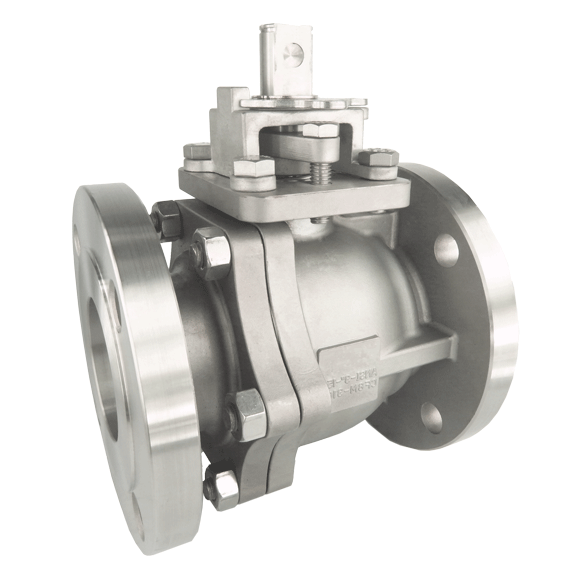

Economical 2-Piece Flanged Ball Valve

series-93

Series 93

Specifications

Series

Series 93

Design

2-piece economical flanged

Port

Full

Size

5" ~ 12"

Rating

ANSI Class 150 / Class 300, PN16/40, JIS 10K / 20K

Body

CF8M / WCB / Special Alloy

Seats

PTFE / RTFE / Metal seat on request

Face to Face

ANSI B16.10, EN 558-1, DIN 3202-F1/F4/F5
