MARS Ball Valves
Cost-effective 2-piece full-port flanged ball valves in ANSI, DIN and JIS flange ratings — Series 93 for large bores and the Direct Mount Series 94D for small bores.
2
Flanged series
CF8M
stainless steel body
Configure onlineSeries 93
Design
2-piece economical flanged
Port
Full port
Size
5" – 12"
Pressure Rating
ANSI Class 150/300, PN16/40, JIS 10K/20K
Body
CF8M / WCB / Special Alloy
Seats
PTFE / RTFE (Metal seat optional)

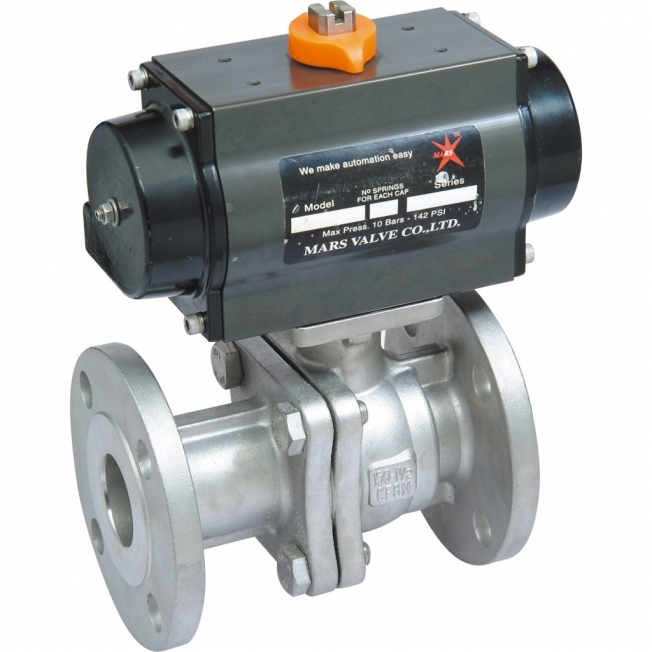

Configure onlineSeries 94D
Design
2-piece economical flanged, Direct Mount
Port
Full port
Size
1/2" – 4"
Pressure Rating
ANSI Class 150, PN16
Body
CF8M / WCB
Seats
PTFE / RTFE
