MARS Ball Valves
Steam-jacketed 2-piece flanged ball valves for high-temperature viscous media — full port, in ANSI, DIN and JIS flange ratings.
4
Flanged series
CF8M
stainless steel body
Configure onlineSeries 90J
Design
2-piece steam jacketed flanged
Port
Full port
Size
1/2" – 4"
Pressure Rating
ANSI Class 150/300, PN16/40, JIS 5K
Body
CF8M
Seats
25% carbon + PTFE

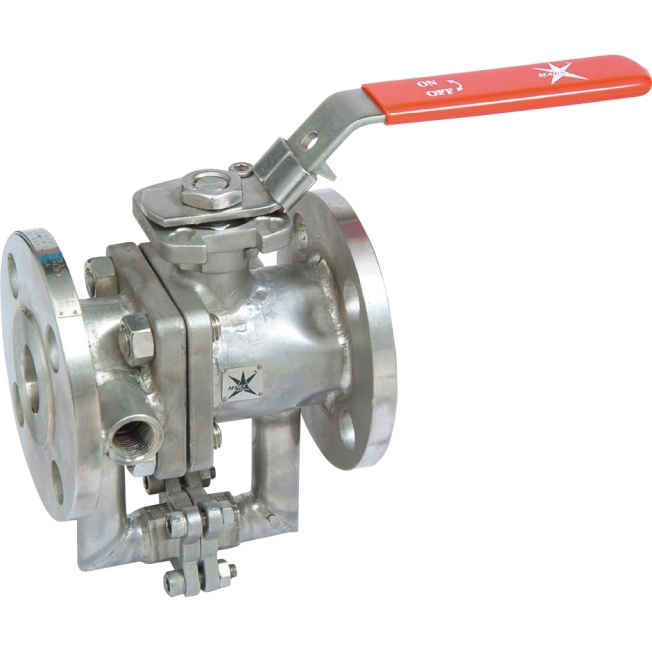

Configure onlineSeries 90DJ
Design
2-piece steam jacketed flanged
Port
Full port
Size
1/2" – 8"
Pressure Rating
ANSI Class 150/300, PN16/40, JIS 10K/20K
Body
CF8M
Seats
25% carbon + PTFE

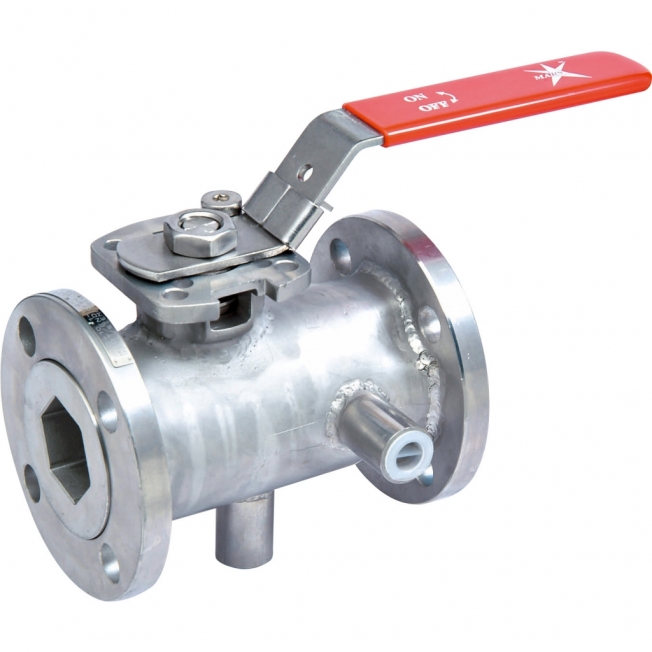

Configure onlineSeries 91DJ
Design
Uni-body steam jacketed flanged
Port
Reduced port
Size
1/2" – 6"
Pressure Rating
ANSI Class 150/300
Body
CF8M
Seats
25% carbon + PTFE

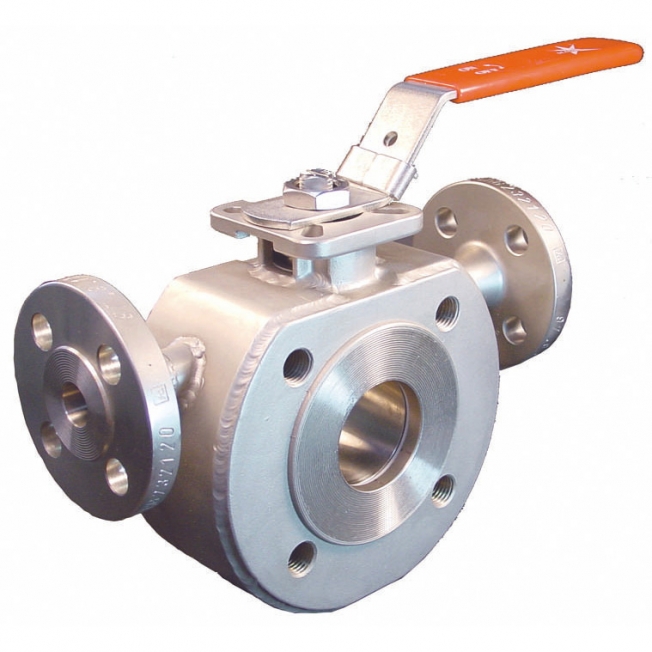

Configure onlineSeries 99J
Design
Wafer type steam jacketed compact
Port
Full port
Size
1/2" – 4"
Pressure Rating
ANSI Class 150, PN16/40
Body
CF8M
Seats
25% carbon + PTFE
