MARS Ball Valves
High performance two-piece ball valves for demanding process applications, including direct-mount and fire-safe series.
7
2-piece series
2,000 PSI
highest rating
Fire safe
options available
Direct mount
options available

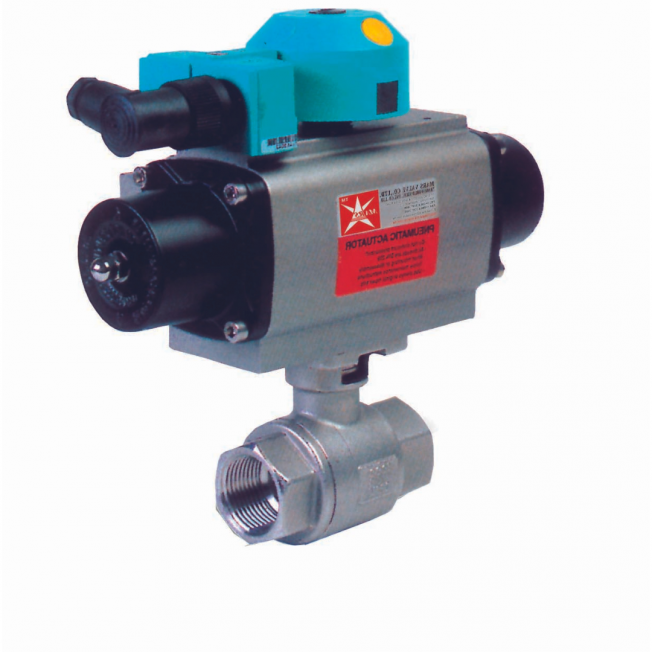

Configure onlineSeries 22
Design
2-piece direct mount
Port
Full port
Size
1/4" – 3"
Pressure Rating
1000 PSI
Body
CF8M / WCB
Seats
PTFE / RTFE
Ends
NPT, BSP, BSPT
Configure onlineSeries 28
Design
2-piece fire safe
Port
Full port
Size
1/4" – 3"
Pressure Rating
1000 PSI
Body
CF8M / WCB
Seats
PTFE / RTFE (others on request)
Ends
NPT, BSP, BSPT
Fire safe
API 607, 7th Edition

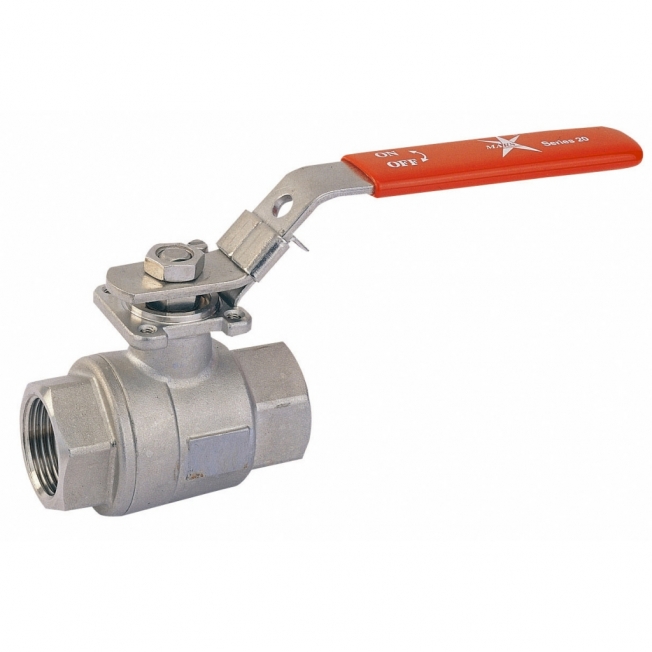

Configure onlineSeries 20-50
Design
2-piece
Port
Full port
Size
1/4" – 3"
Pressure Rating
1000 PSI
Body
CF8M / WCB
Seats
PTFE / RTFE (others on request)
Ends
NPT, BSP, BSPT

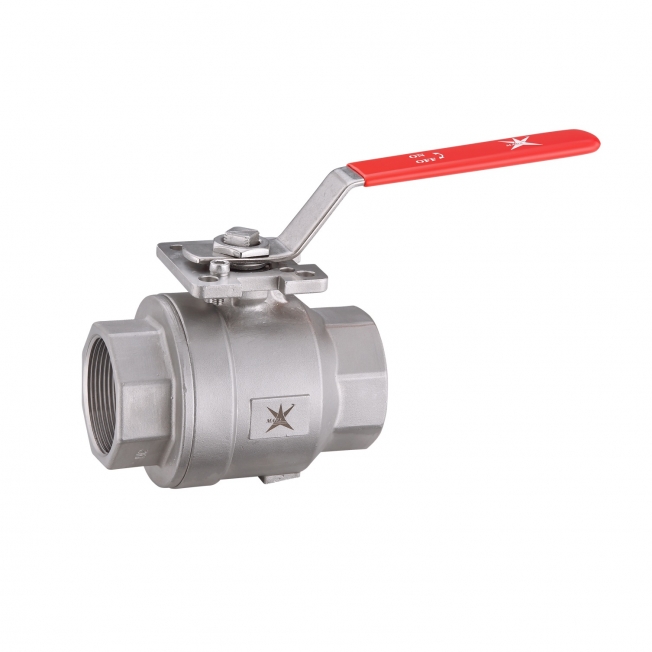

Configure onlineSeries F20-80
Design
2-piece Direct Mount
Port
Full port
Size
1/4" – 2"
Pressure Rating
1500 PSI
Body
CF8M / WCB
Seats
PTFE / RTFE / TFM1600
Ends
NPT, BSP, BSPT

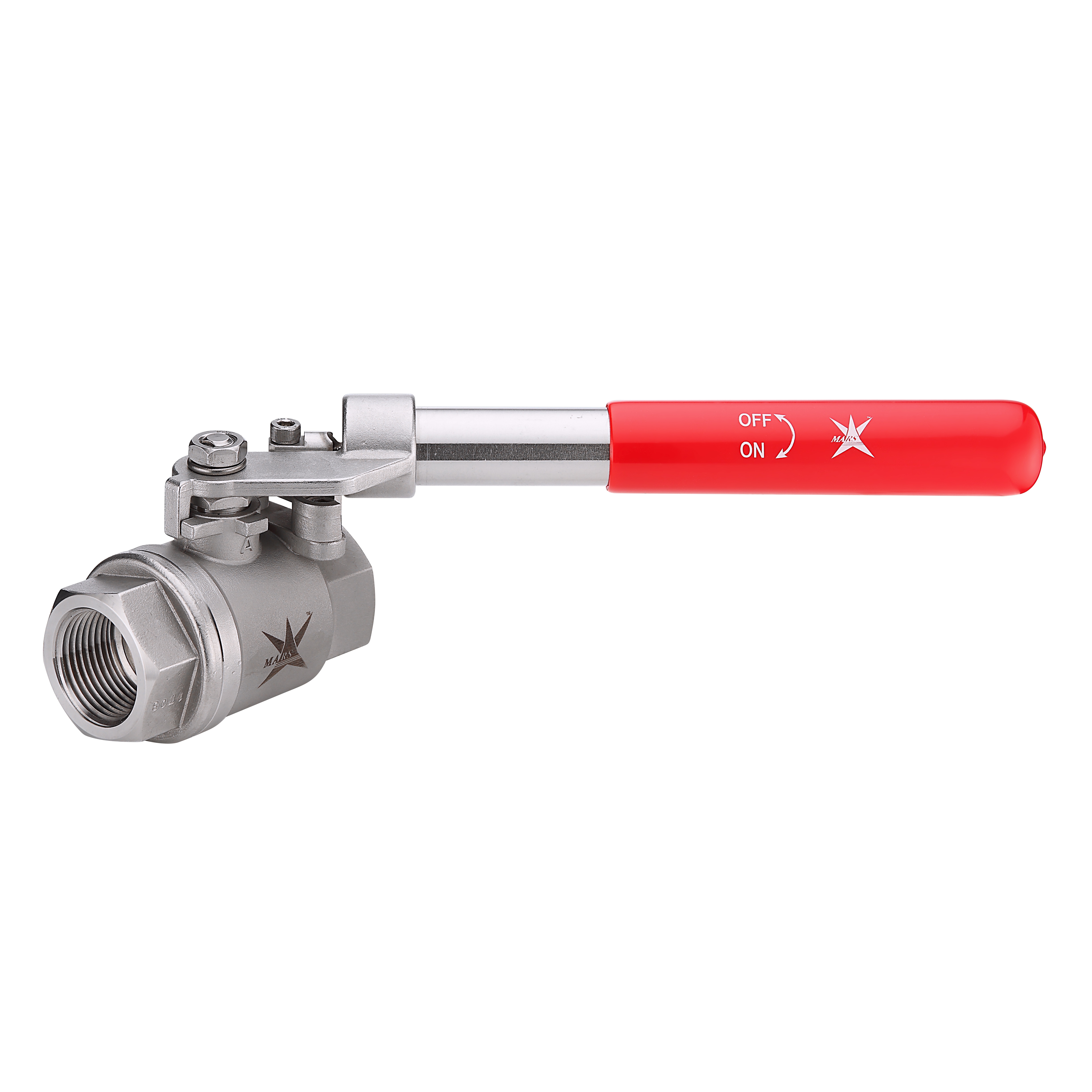

Configure onlineSeries F21-10
Design
2-piece with SRS Handle
Port
Full port
Size
1/4" – 2"
Pressure Rating
2000 PSI
Body
CF8M
Seats
RTFE
Ends
NPT, BSP, BSPT

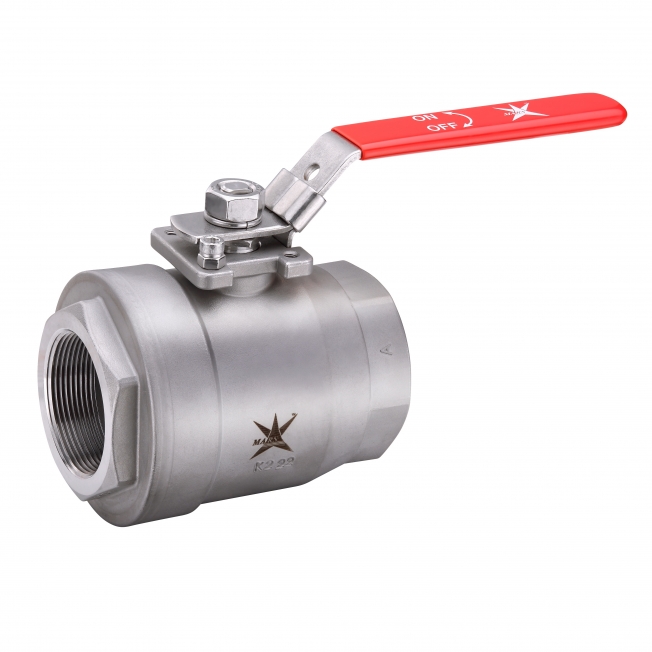

Configure onlineSeries F21-20
Design
2-piece Fire Safe
Port
Full port
Size
1/4" – 4"
Pressure Rating
2000 PSI
Body
CF8M / WCB
Seats
PTFE / RTFE
Ends
NPT, BSP, BSPT
Fire safe
API 607, 6th Edition

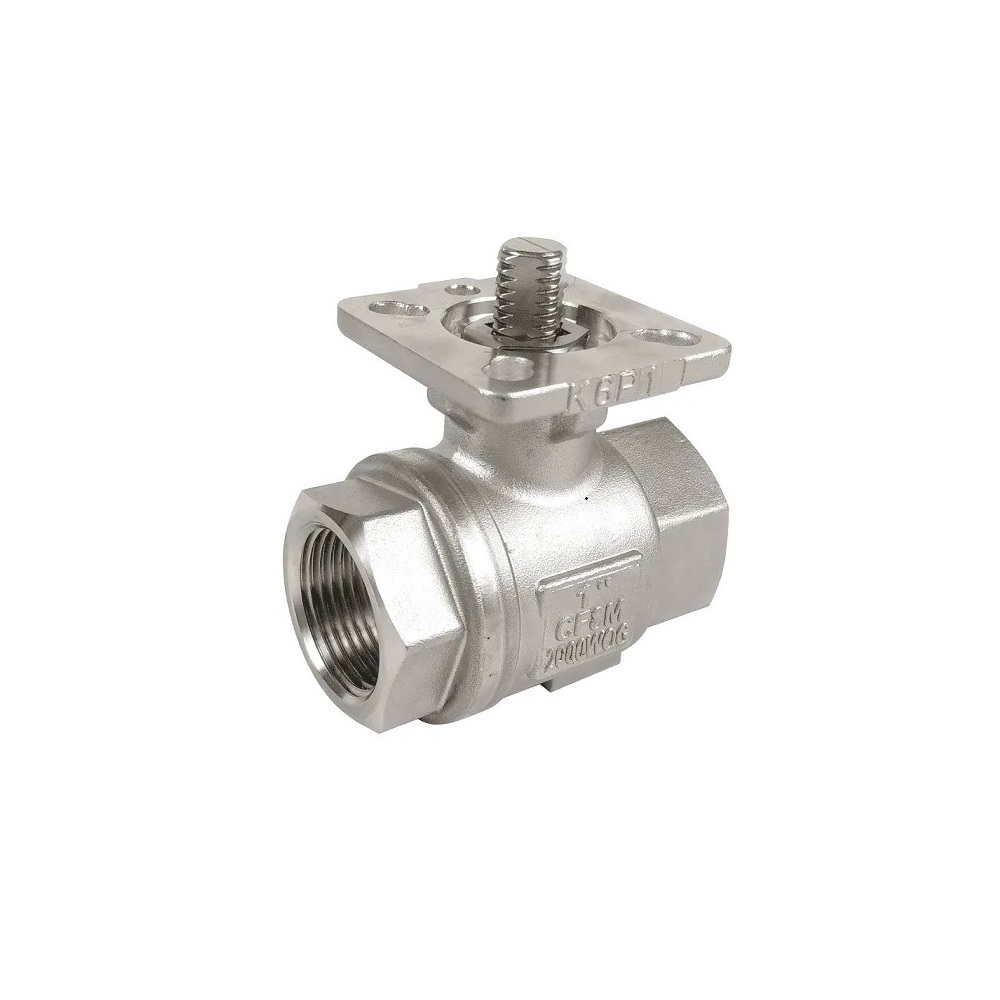

Configure onlineSeries F202D
Design
2-piece Seal Welded Direct Mount
Port
Full port
Size
1/4" – 4"
Pressure Rating
2000 PSI
Body
CF8M / WCB
Seats
TFM1600
Ends
NPT, BSP, BSPT
