MARS Ball Valves
Fully maintainable 3-piece flanged ball valves for high-pressure process service — fire-safe and ISO 15848-1 options, in ANSI Class 600 to 2500.
3
Flanged series
Fire safe
options available
CF8M
stainless steel body
Configure onlineSeries F85
Design
3-piece flanged, high pressure
Port
Full port
Size
1/2" – 2"
Pressure Rating
ANSI #2500
Body
CF8M
Seats
Delrin / Peek

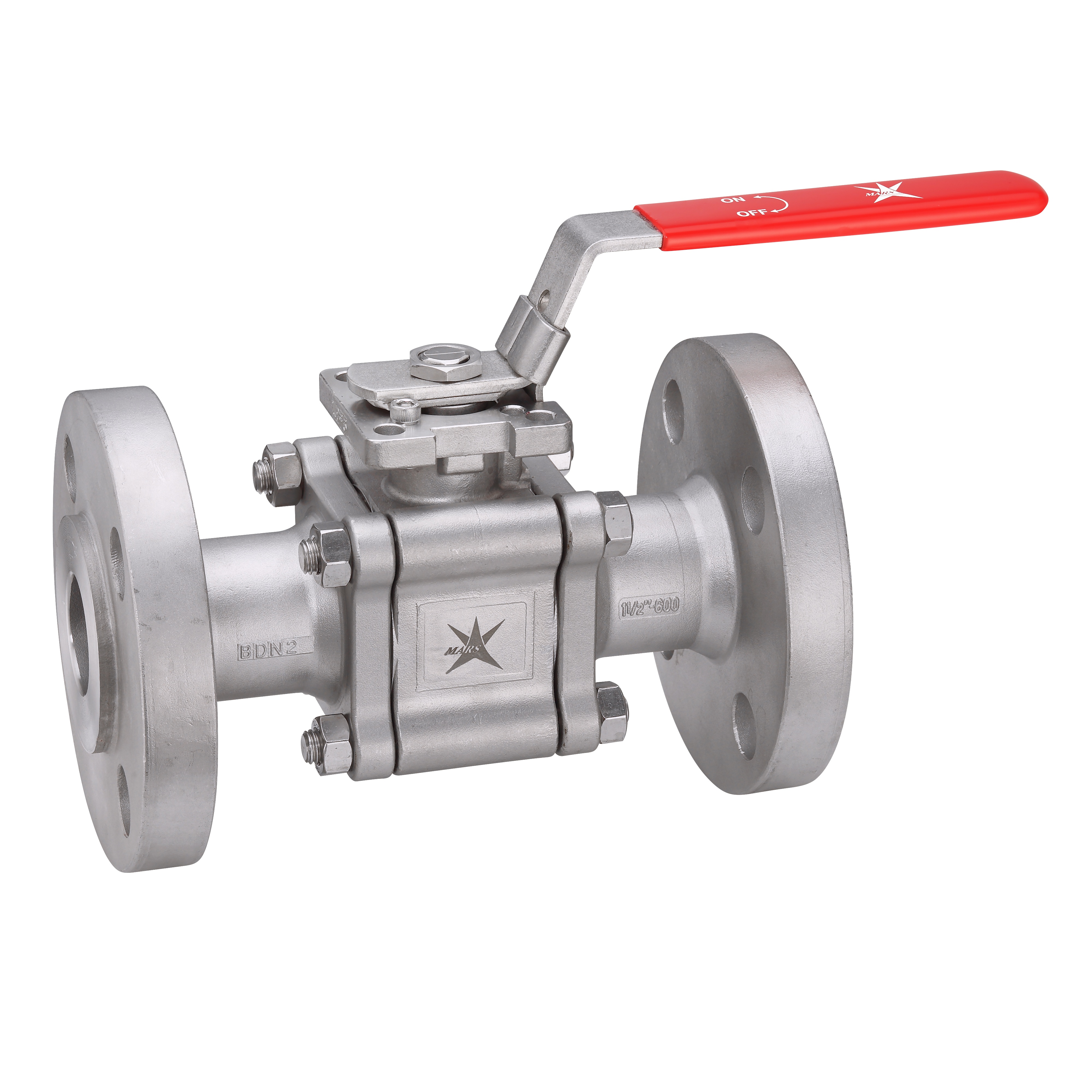

Configure onlineSeries F88
Design
3-piece Direct Mount flanged
Port
Full port
Size
1/2" – 4"
Pressure Rating
ANSI #600 / #900
Body
CF8M / WCB / Special Alloy
Seats
Delrin / Peek / TFM1600
Certified
Fire-safe, ISO 15848-1

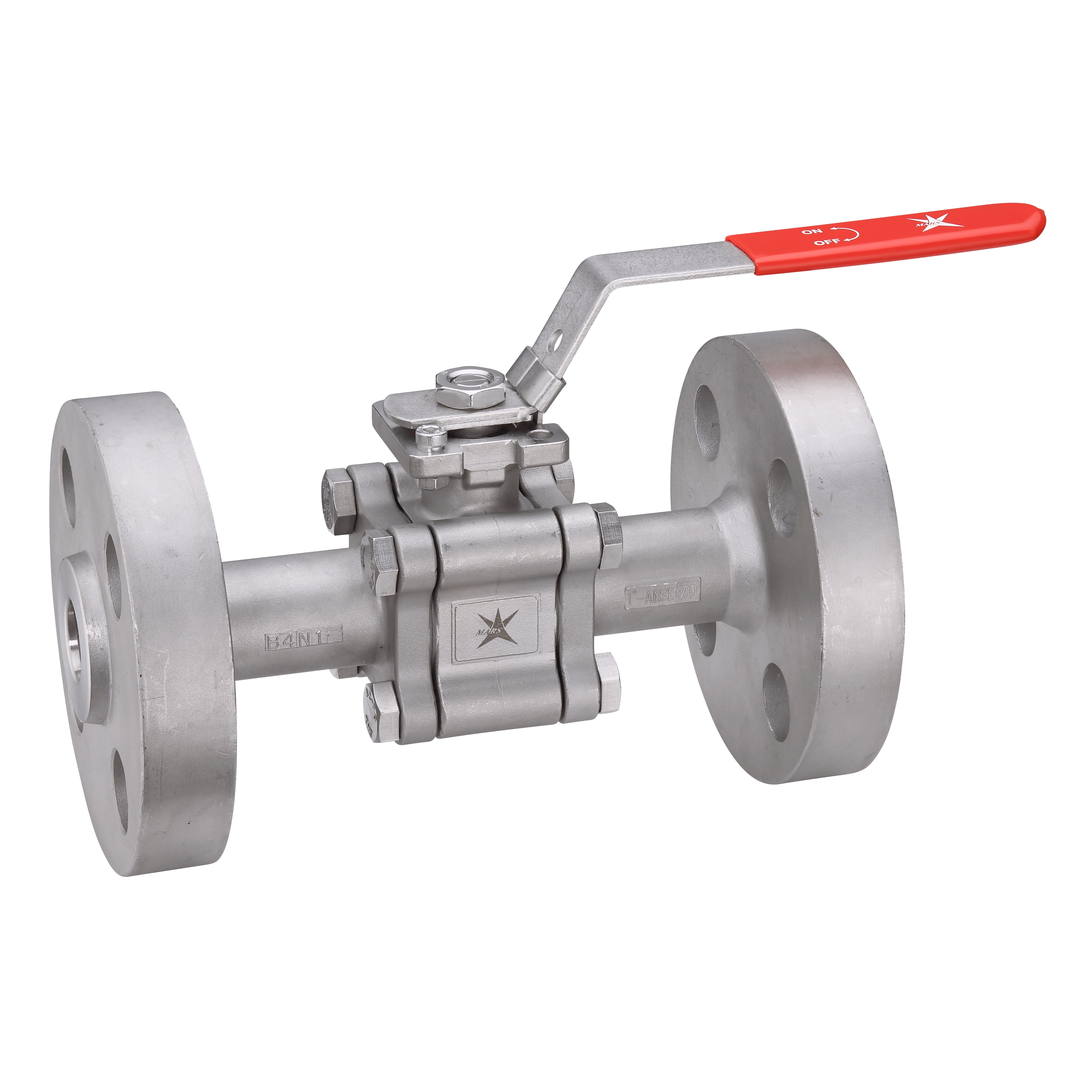

Configure onlineSeries F89
Design
3-piece Direct Mount flanged
Port
Full port
Size
1/2" – 3"
Pressure Rating
ANSI #1500
Body
CF8M / WCB
Seats
Delrin / Peek
Certified
Fire-safe, ISO 15848-1
